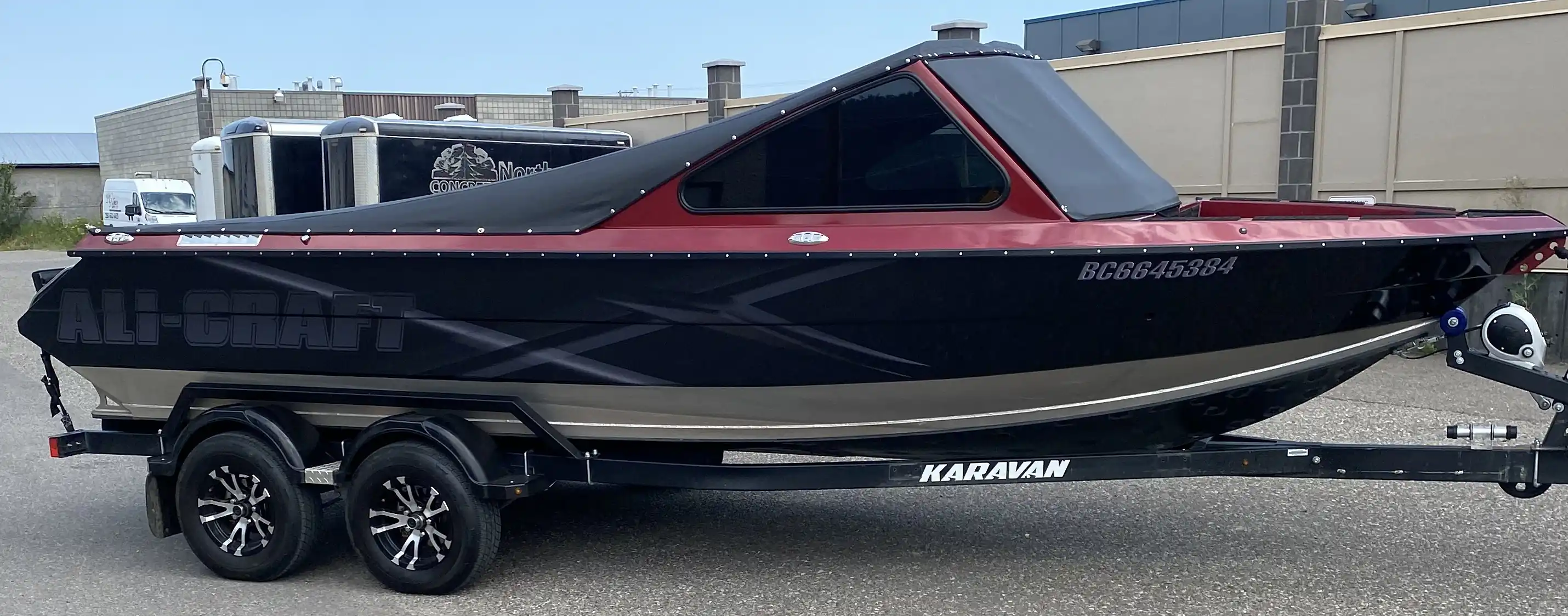

Ranger
Best for
The Ranger shows its strengths in the bigger water applications, its longer bow plates help to cut through the chop, allowing for a smoother ride. The large reverse chines and 10' long lift strakes provide vital lift excellent control in fast moving water.
Ali-Craft builds the Ranger with a robust support structure that can be adjusted to suit your specific needs, finding the perfect balance of performance and strength to weight ratios. The build doesn't just stop there. From different bow options to engine cover configurations full cabins to partial cabins, this hull can be built to fit your needs.
specifications & what’s included
19' or Bigger
Length
8' 2"
Beam
8°, 10°, 12°
vee angle at tans
6' 6"
Bottom Width
Hull Details:
- Bottom: 1/4" 5086 (Standard)
- Bottom: 1/4" 6061 (Heavy Duty)
- Sides: 1/8" 5086
- Transom: 3/16" 5086
- Hull: 6 Stringers (Standard)
- Hull: 8-10 Stringers (Heavy Duty)
- Chine, Transom, and Bilge Reinforcing (Heavy Duty Model)
- UHMW Bottom Reinforcement: 4' or Full Bottom 1/2" on Standard, 3/4" Centre with 1/2" Wings and Tips on Heavy Duty
- Floor: 1/2" Treated Plywood Wrapped with Marine Grade Vinyl
- Windows Tinted Glass
- Custom Fabricated 1/8" 5052
- Aluminum Fuel Tanks
Motor & Jet Packages
- Kodiak 5.3L 343HP DI
- Kodiak 6.2L 407HP DI
- Kodiak LSX 454 511HP
- Kodiak LT4 600hp
- American Turbine SD309 wSS Imp
- Kodiak 3 Stage
- Hamilton 214 w/ Closed Coupler
- Southern Jet 216
- Clean Out Grate (Exact 11bar)
Make it Yours
Built To order
Standard hull size
- 19" Ranger (Base Hull)
- 20" + Ranger (Base Hull)
- Custom Ranger
Hull Width Options
- 6'6" (Standard)
- 6'10" (Custom)
- 7' to 8' (Custom)
UHMW Teflon
- 4 feet 1/2" UHMW

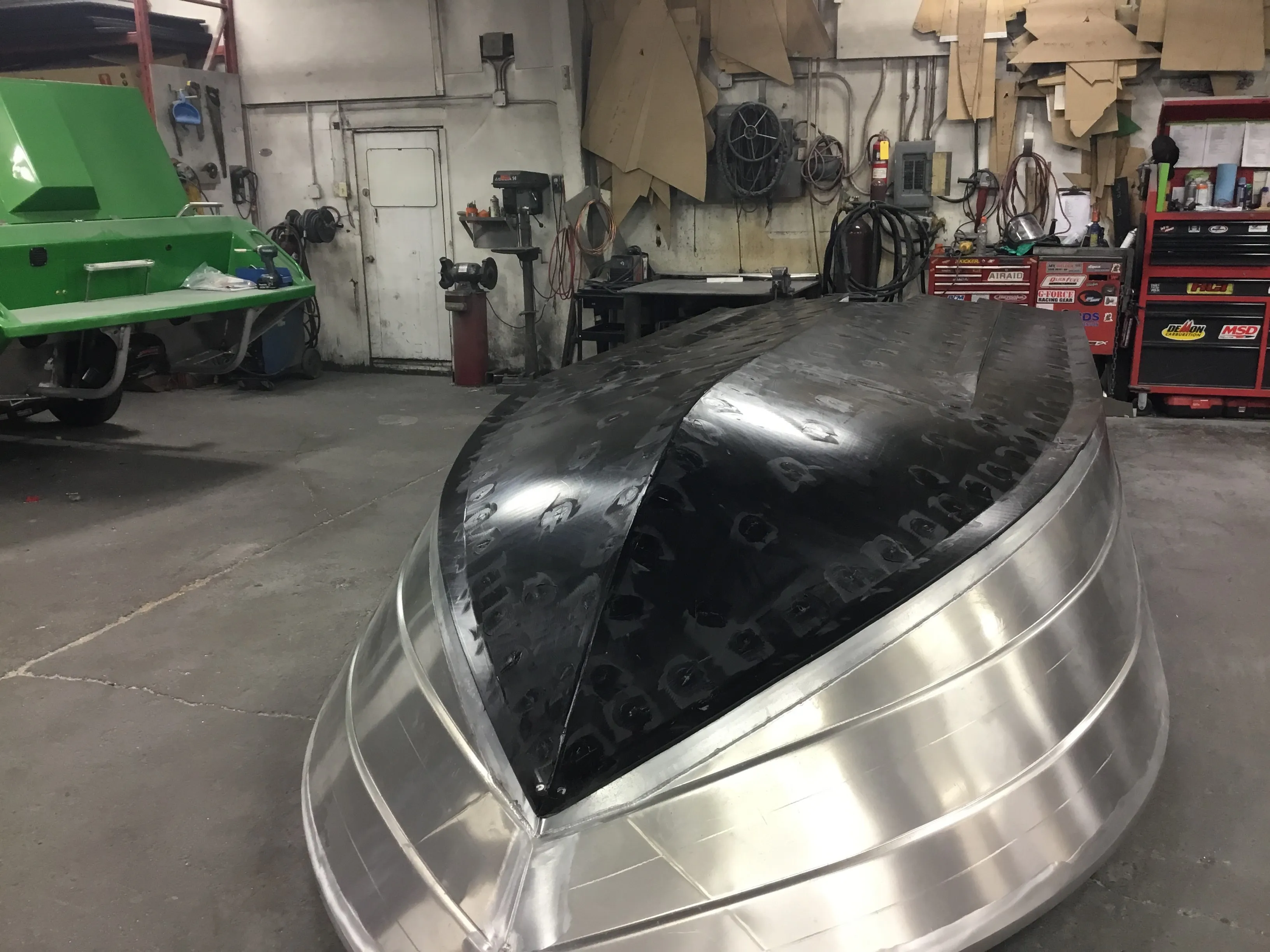

- Full 1/2" UHMW
- Full 3/4" Centre 1/2" Wings
- Bow Cap 1/2" Bolted
- Additional charge $500/ft For Extra Lengths
- Fuel Tank Options Bow Tank (200L/45G)
- Bow&Rear Tanks Combo (273L/60G)
- Custom Fuel Tank Size
Interior Layout Options

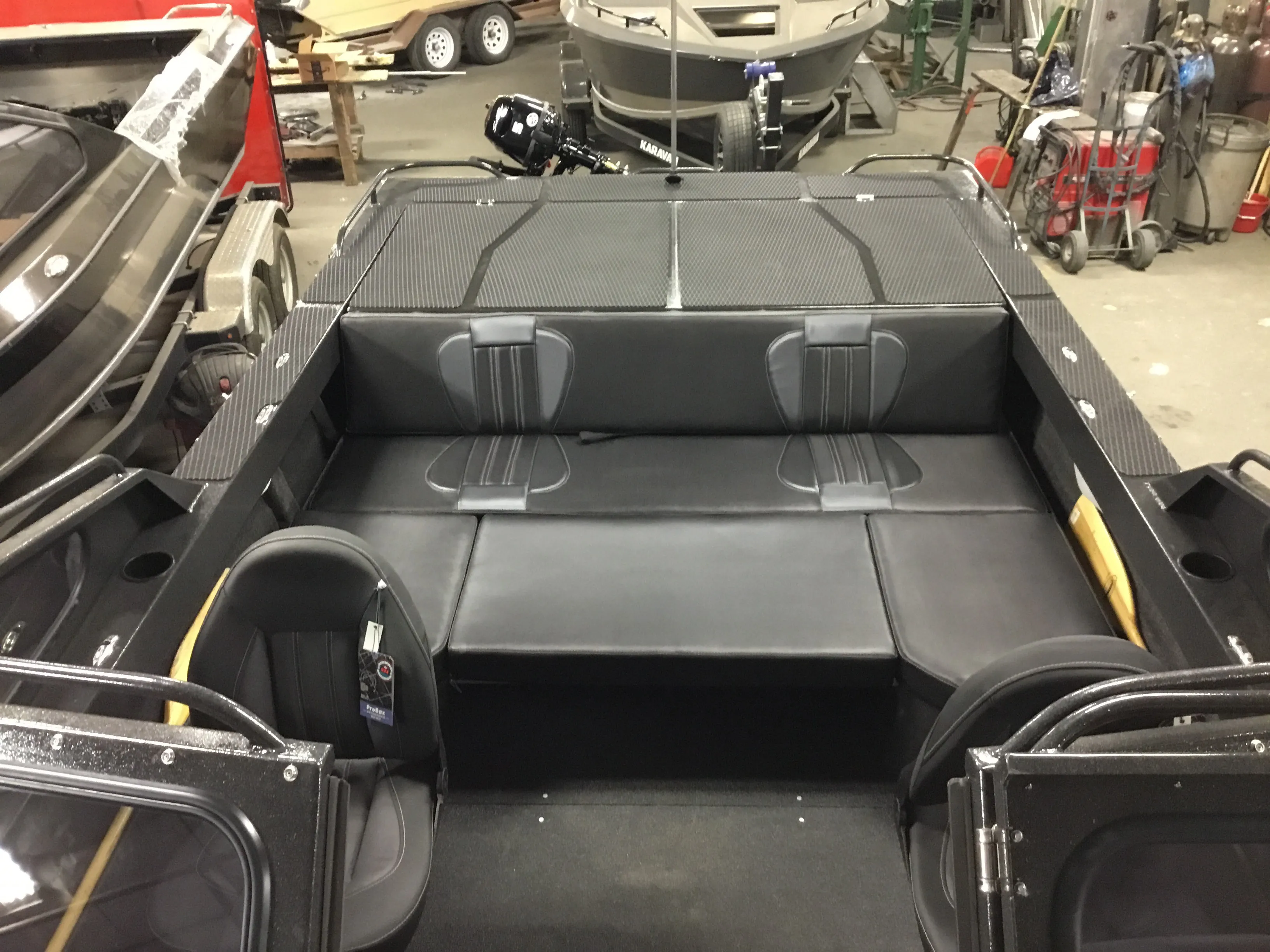

- Rear Bulkhead w/ Bench Seat Upholstered Backrest and Seat

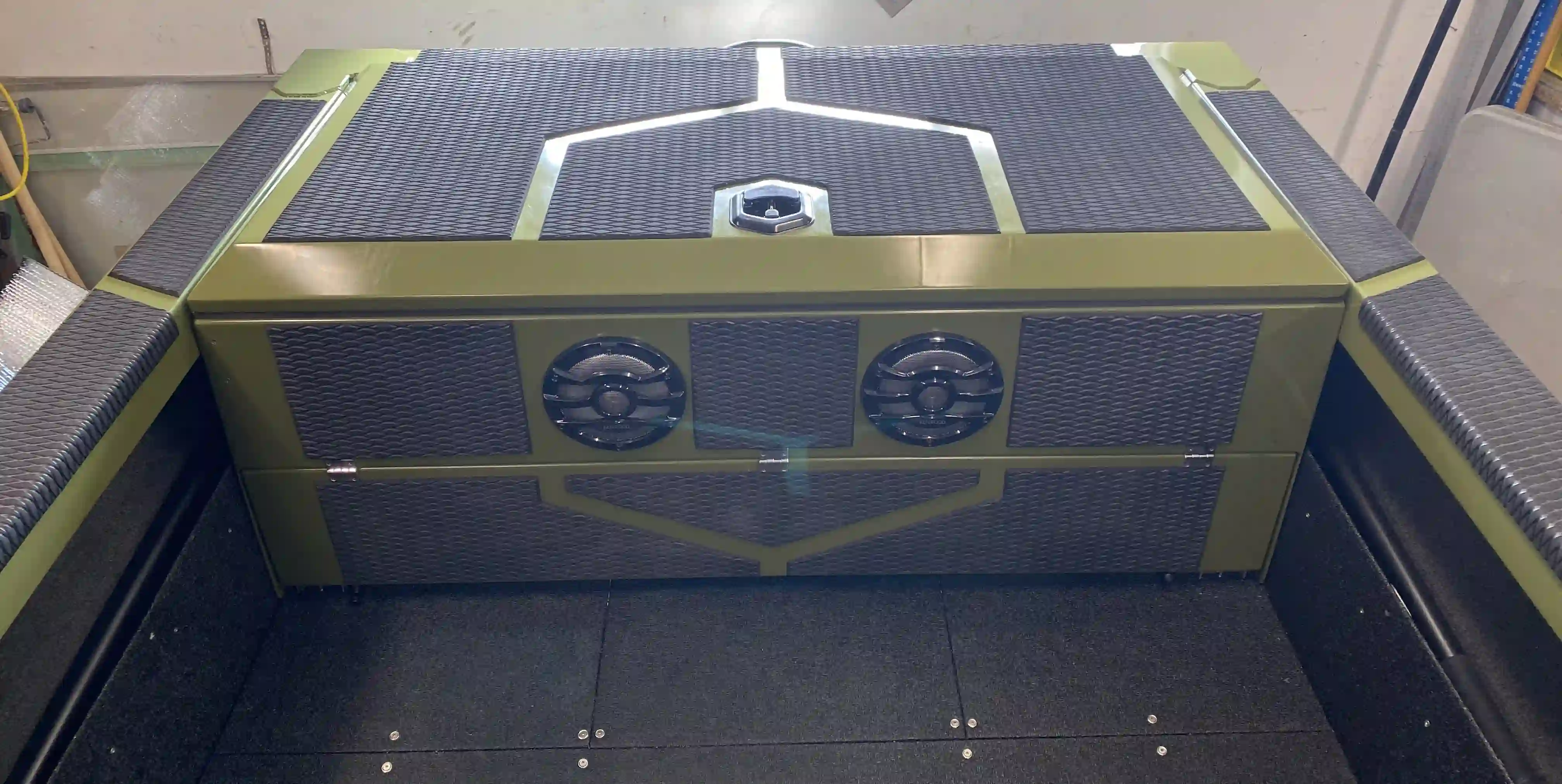

- Rear Bulkhead w/ Flip Up Bench Seat | No Upholstery

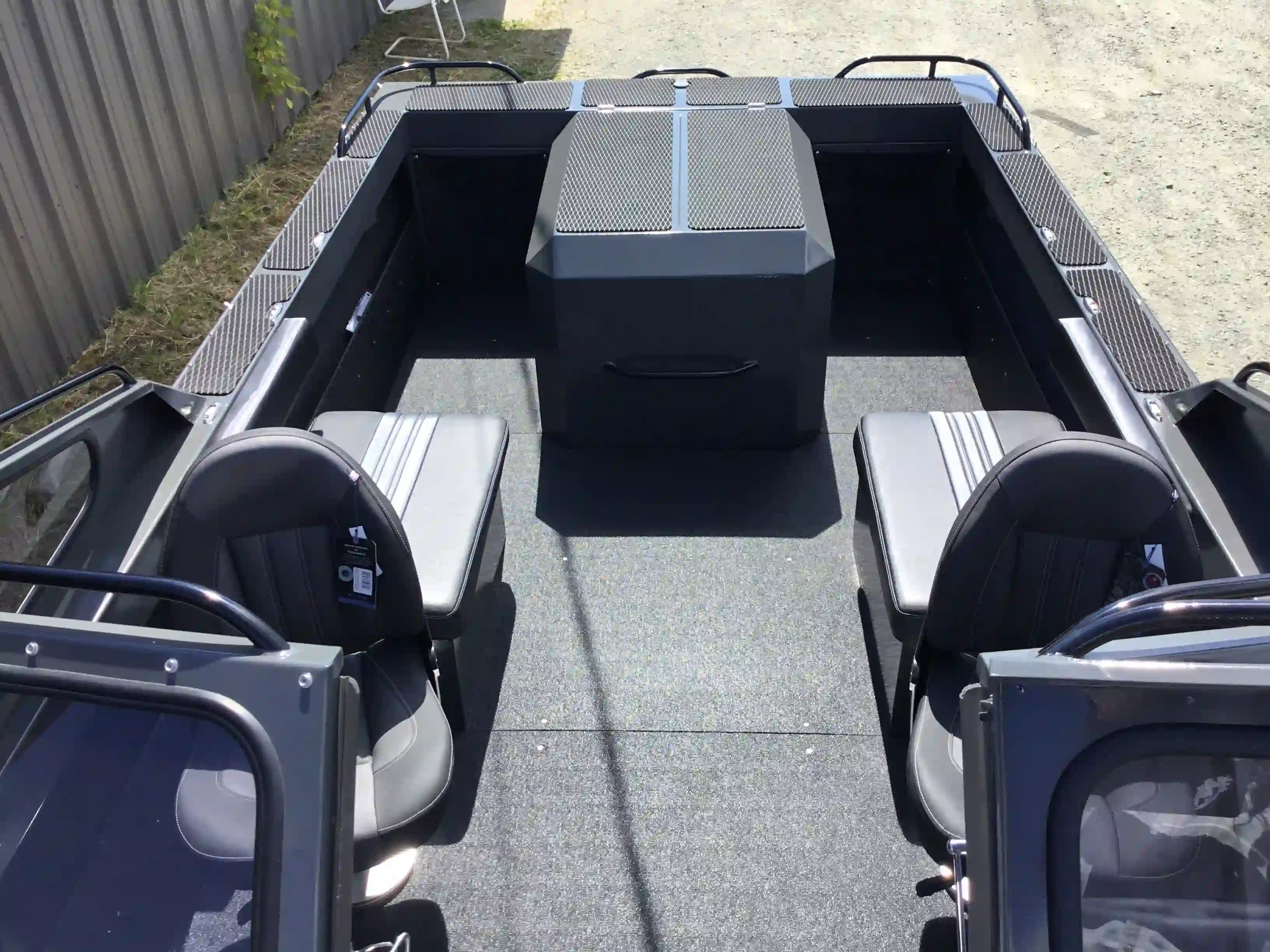

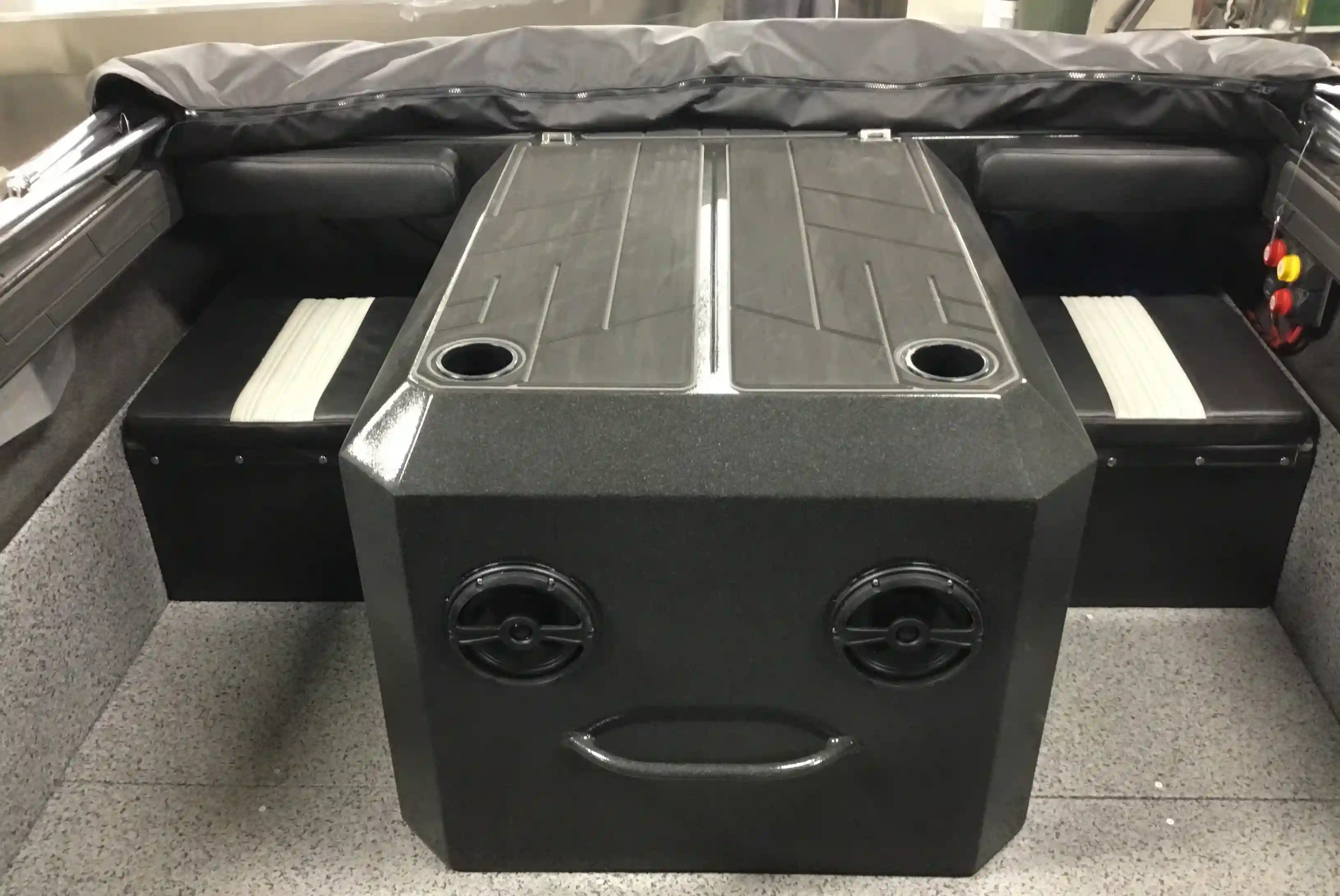

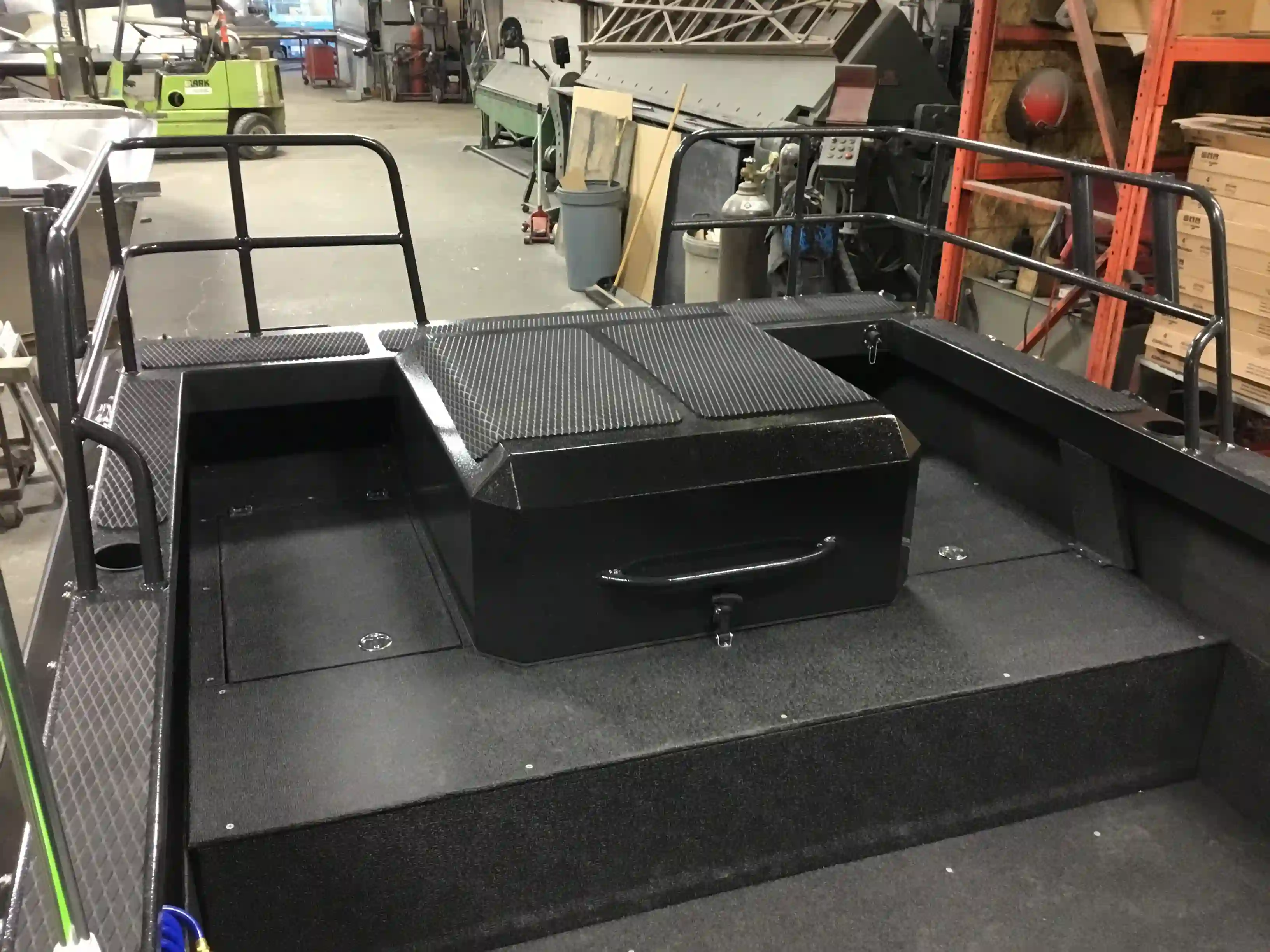

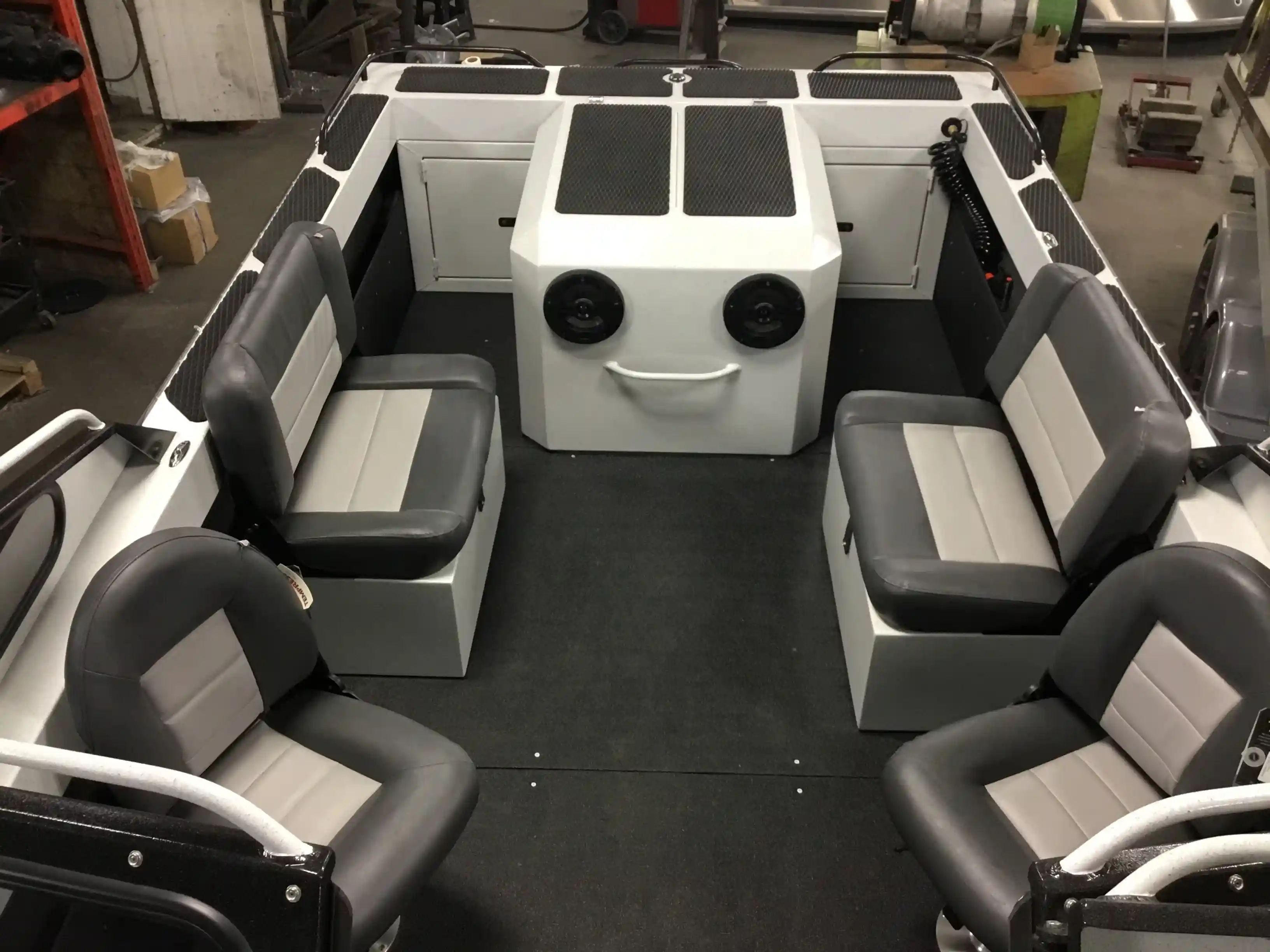

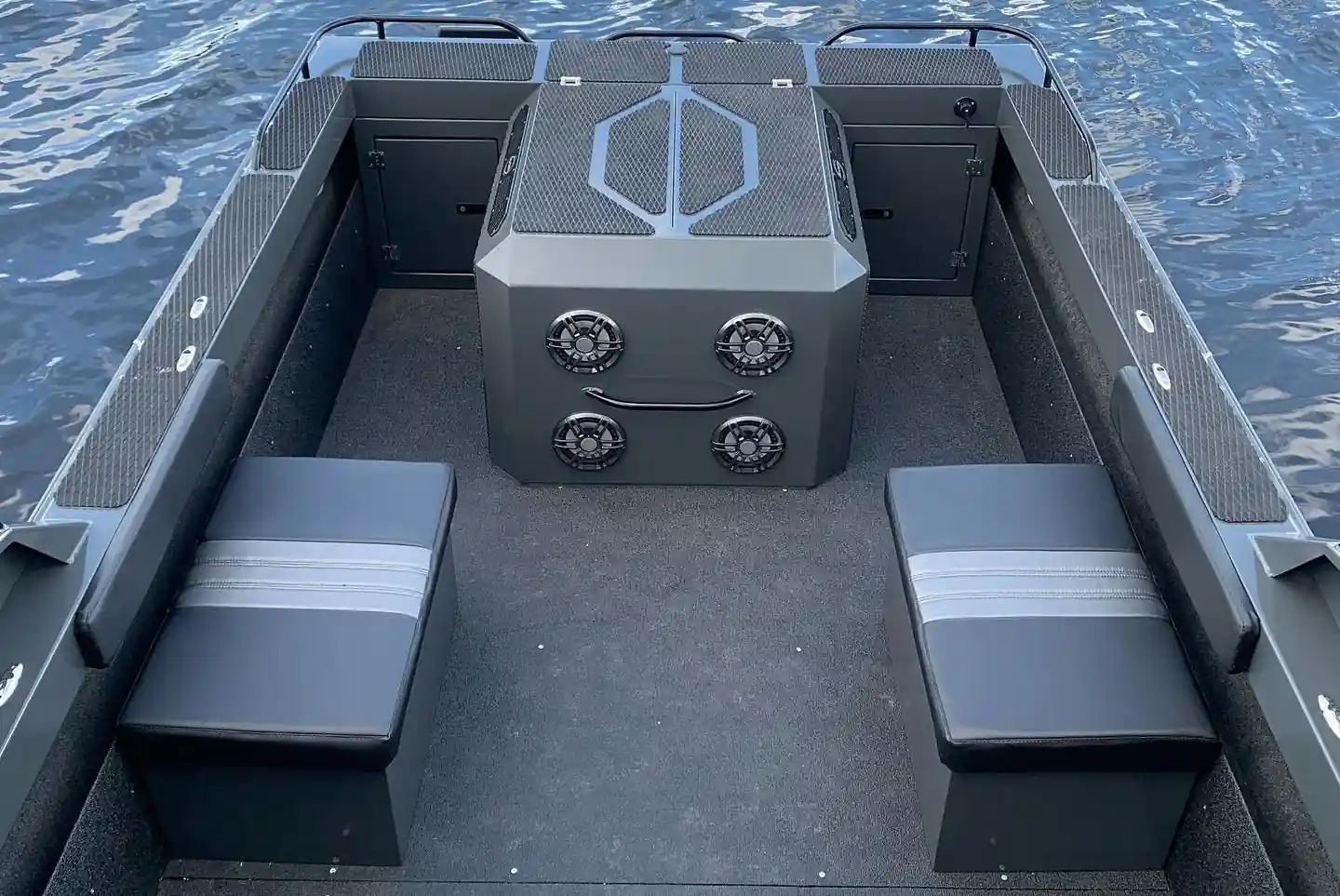

- Rear Dog House Engine Cover w/ Removable Seat Boxes

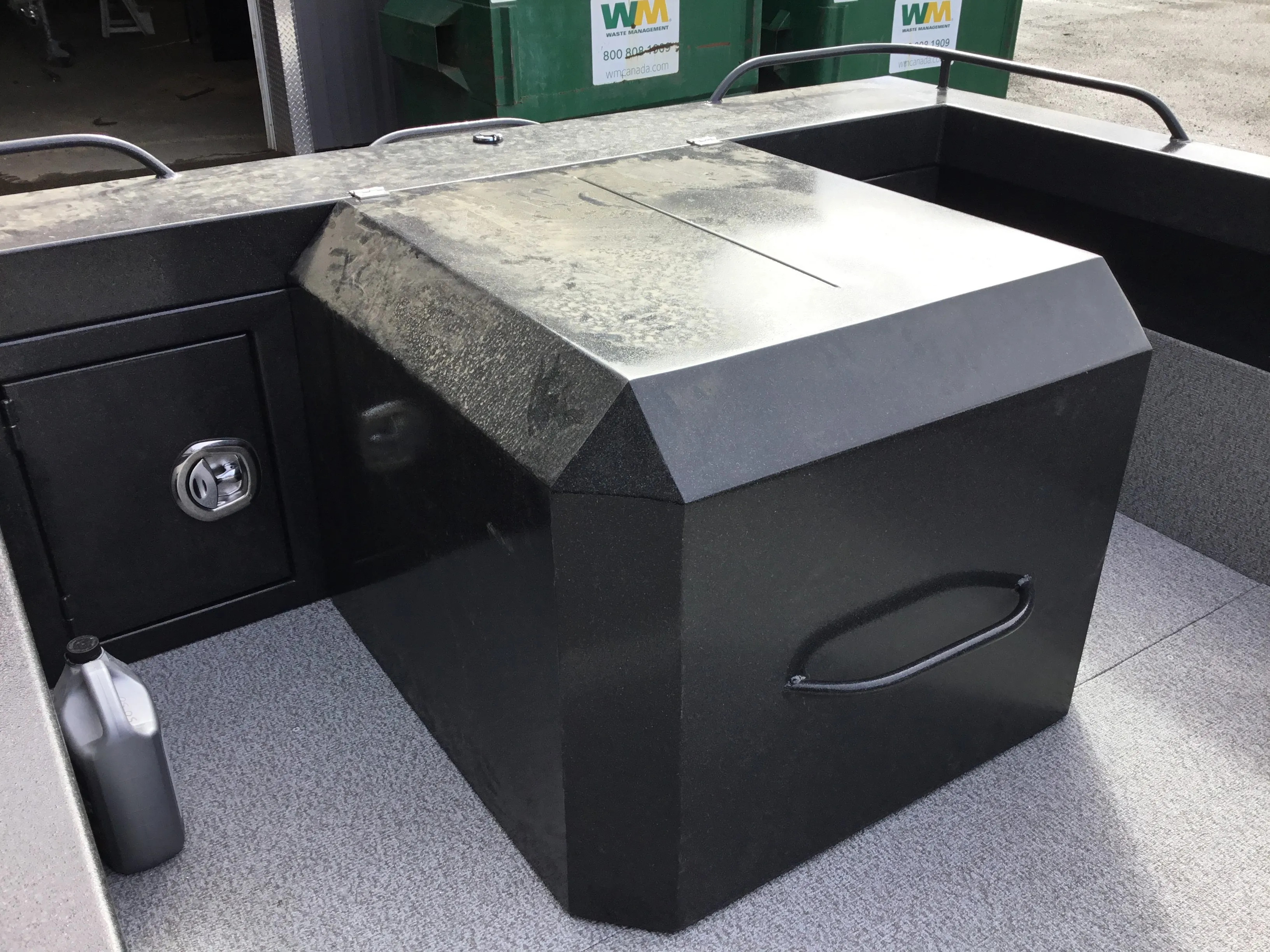

- Rear Dog House Engine Cover w/ Locking Rear Doors | Wrap Around Rear Bench
Trailer
- Karavan 4800 w/ Brakes (Black)
- TWMC Custom Trailer w/ electric brakes & Torsion Axels
- Trailer Rock
- GARD BowBuddy
Custom Hull Options
- Closed Bow

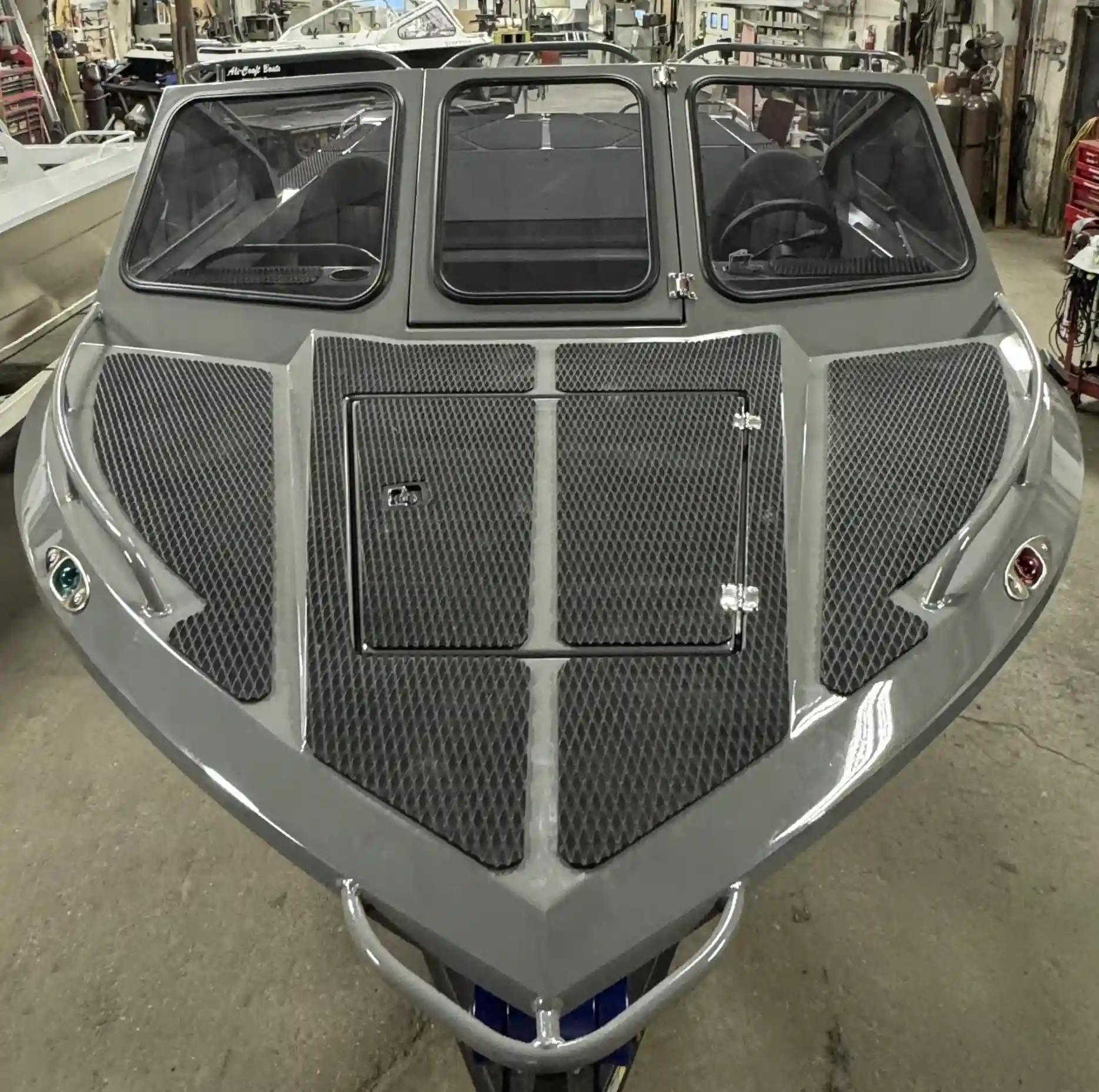

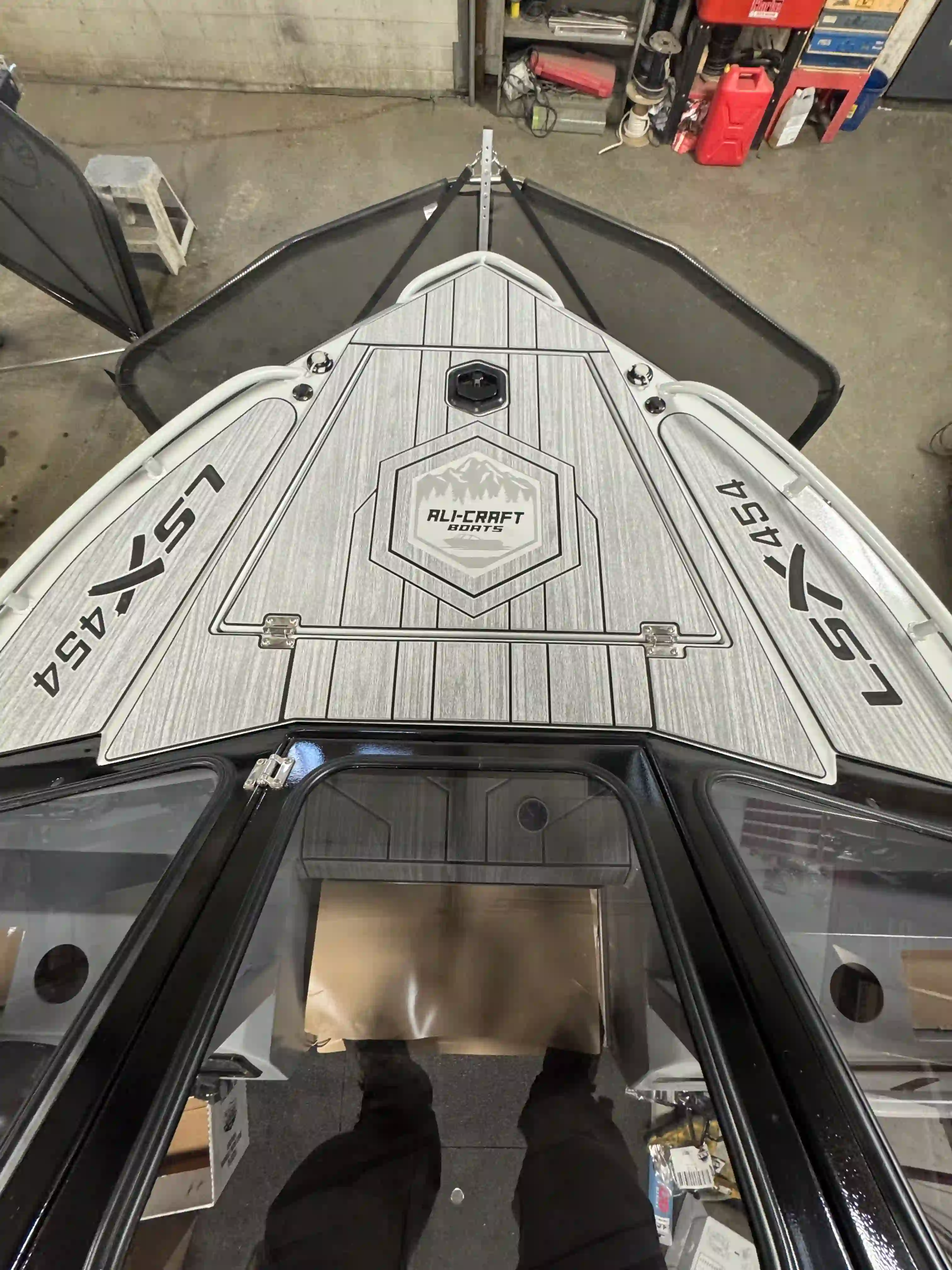

- Closed Bow w/ Hatch

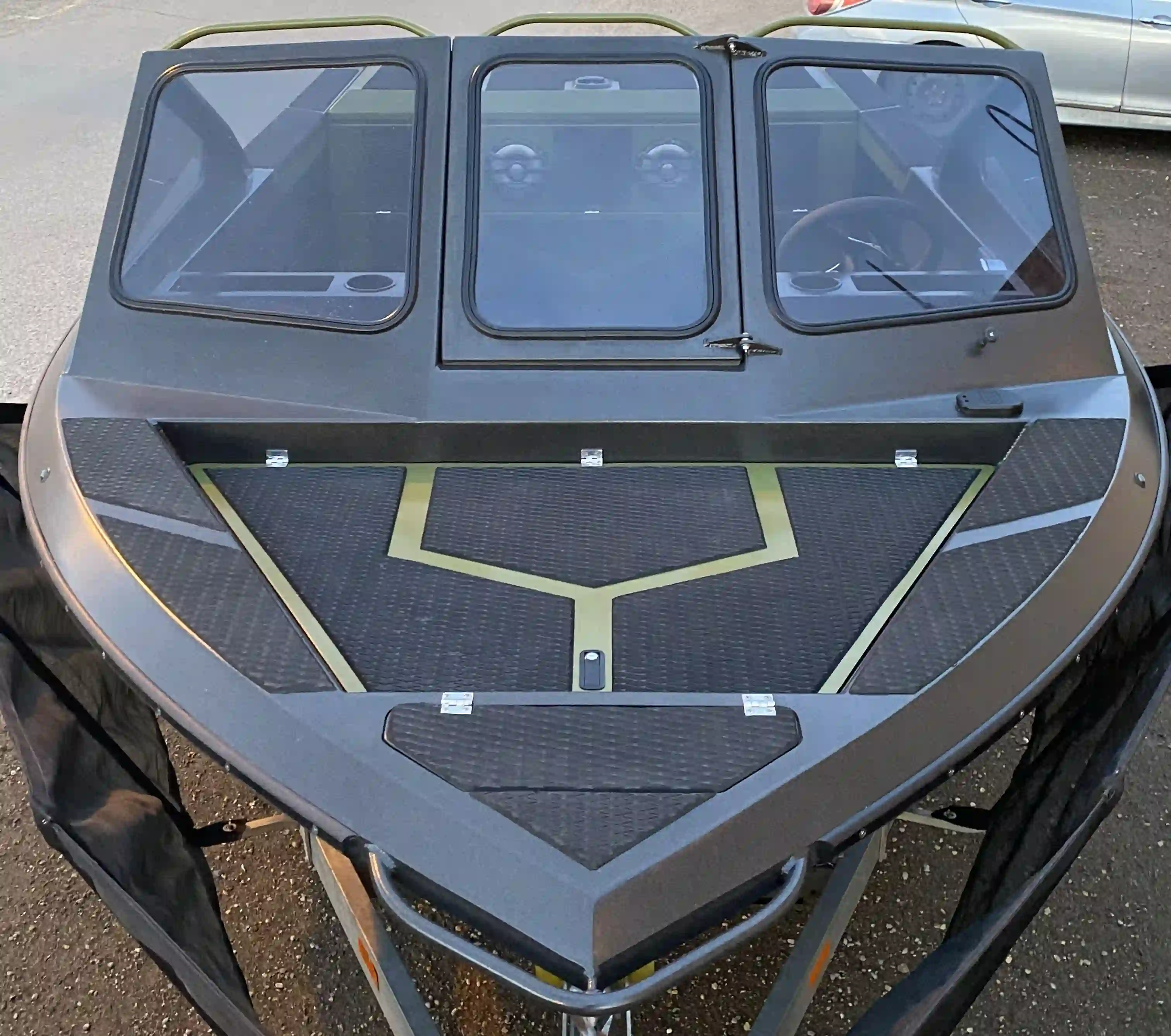

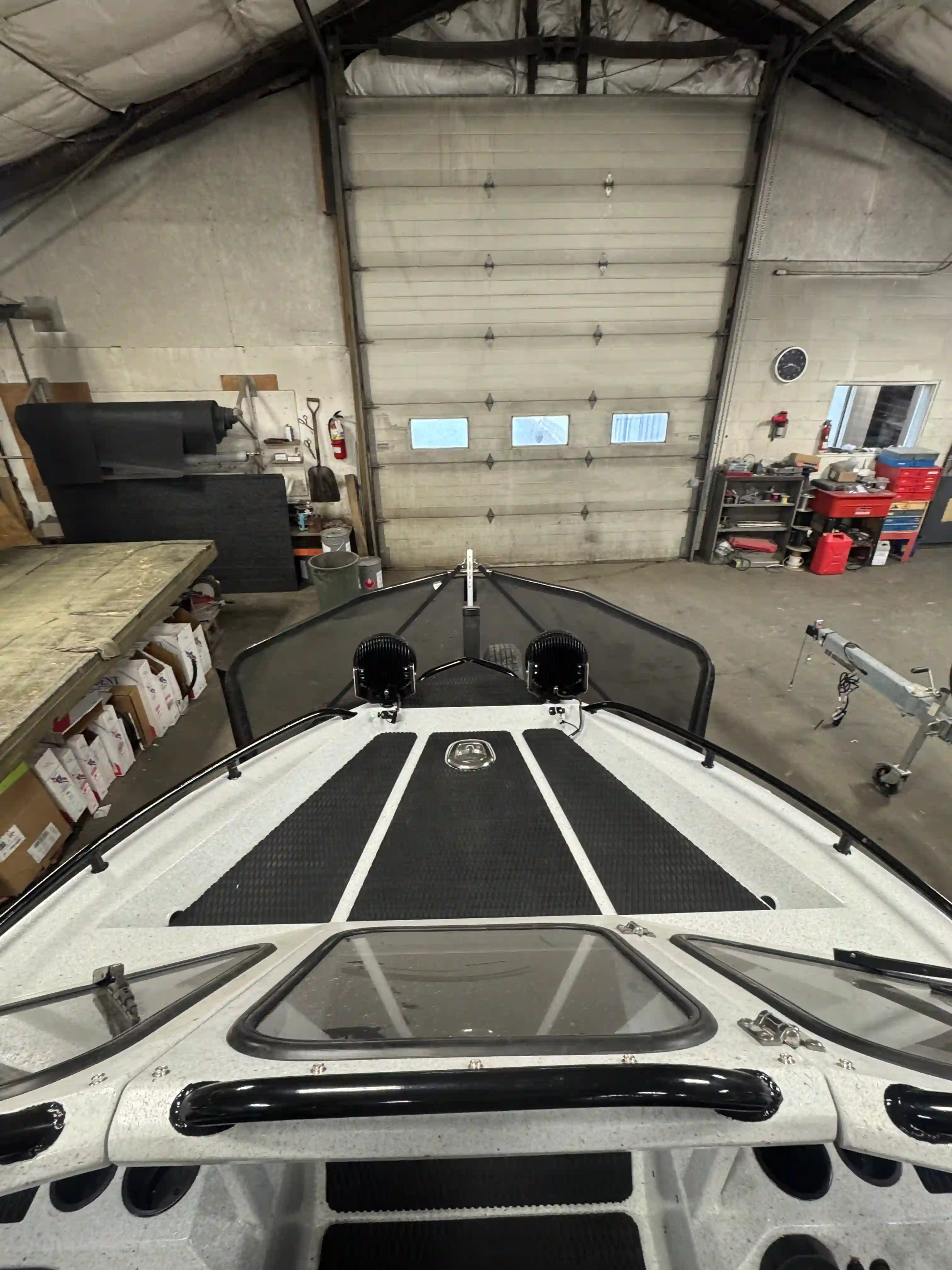

- 4 inch Drop Bow w/ Hatch

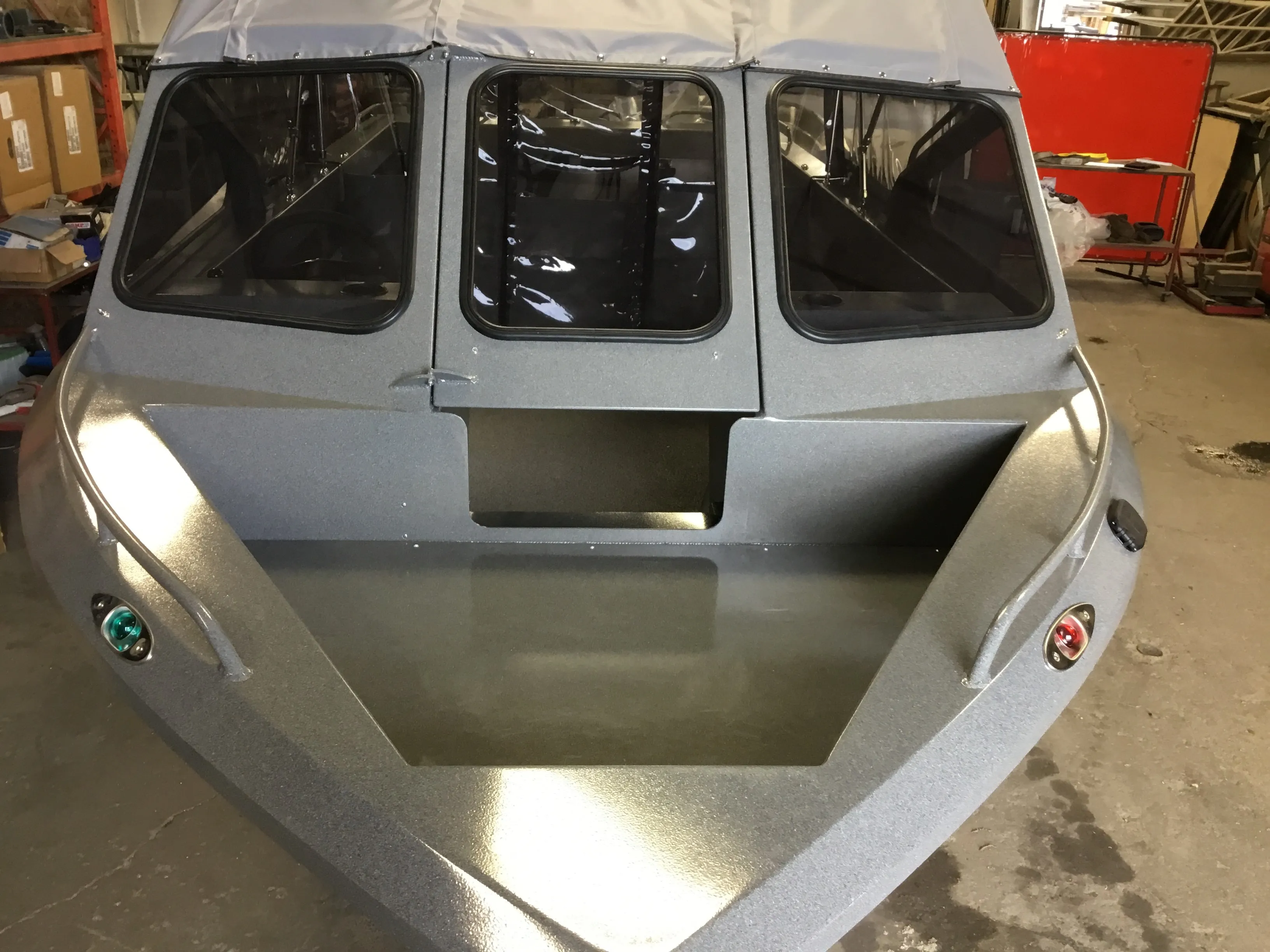

- Step Deck
- Bow Rider

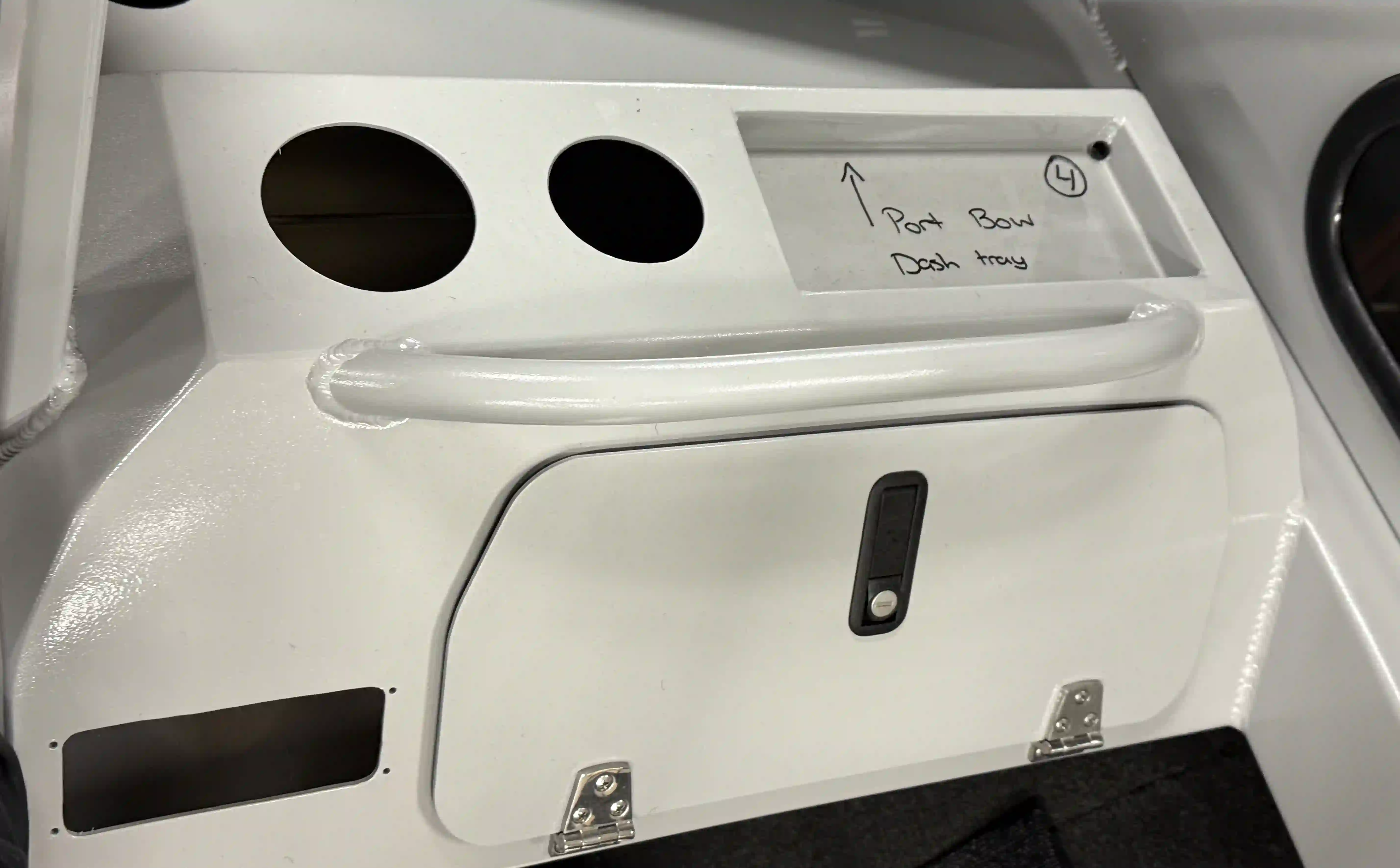

- Dash Drop Trays
- Centre Glove Box

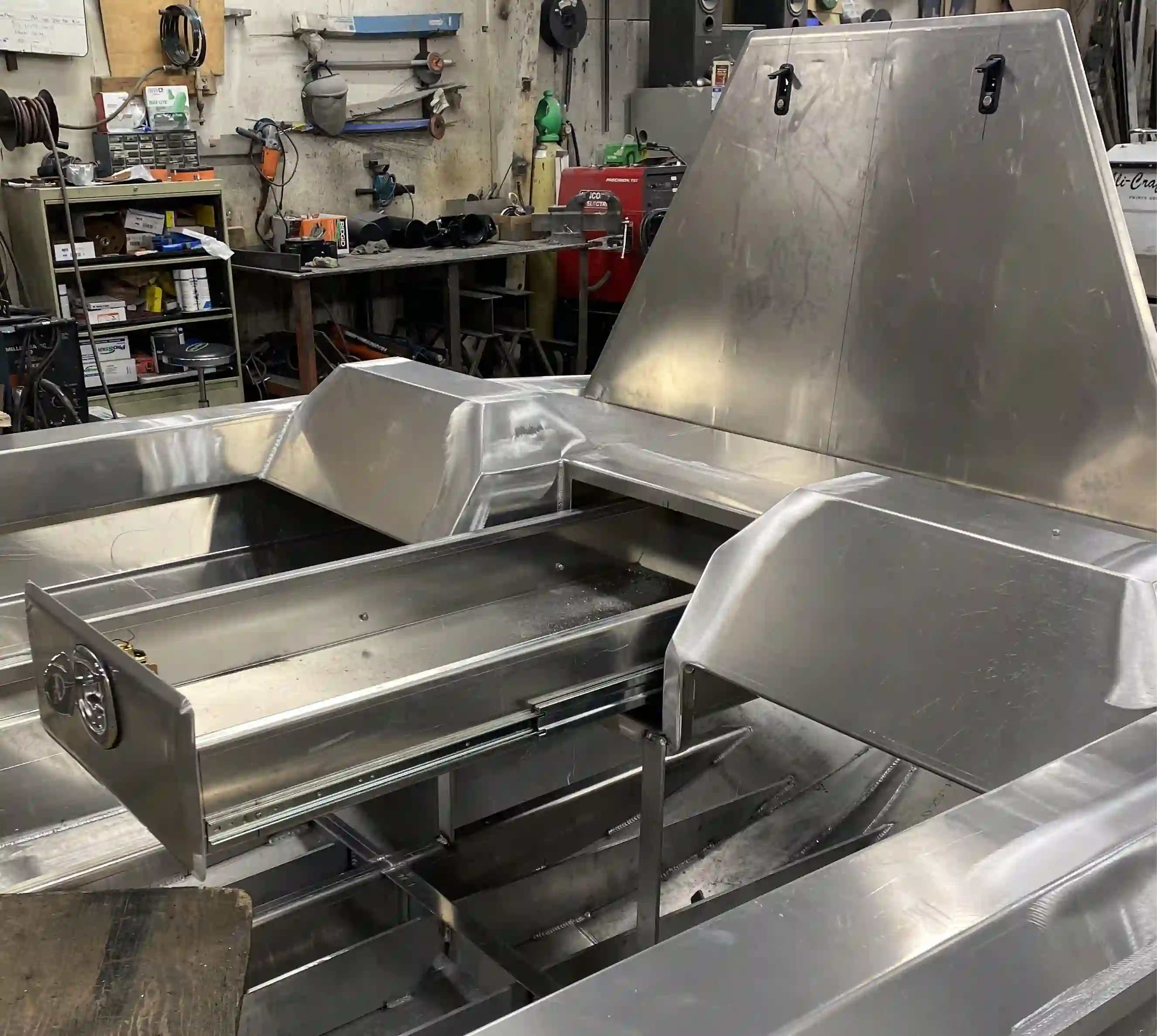

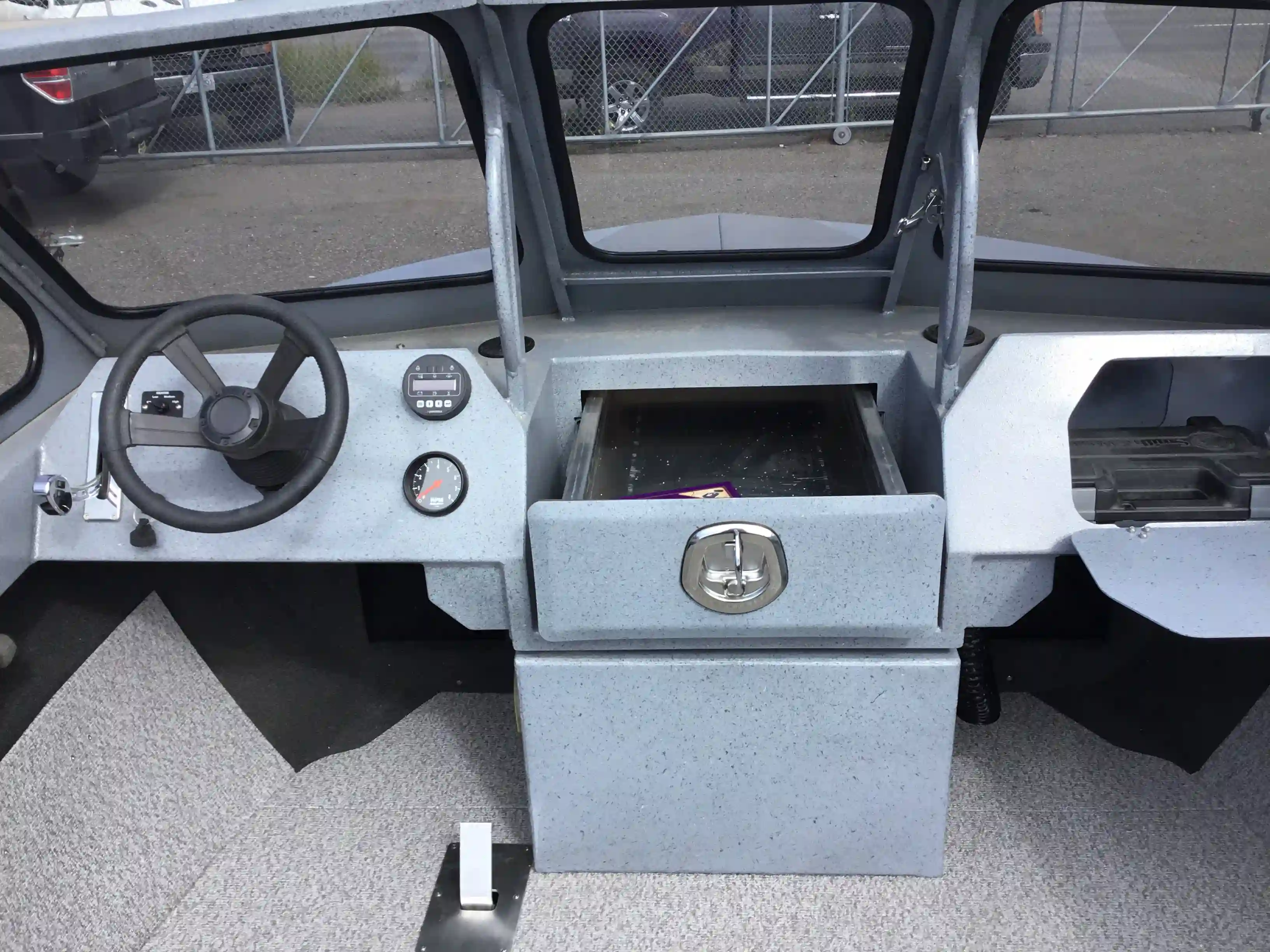

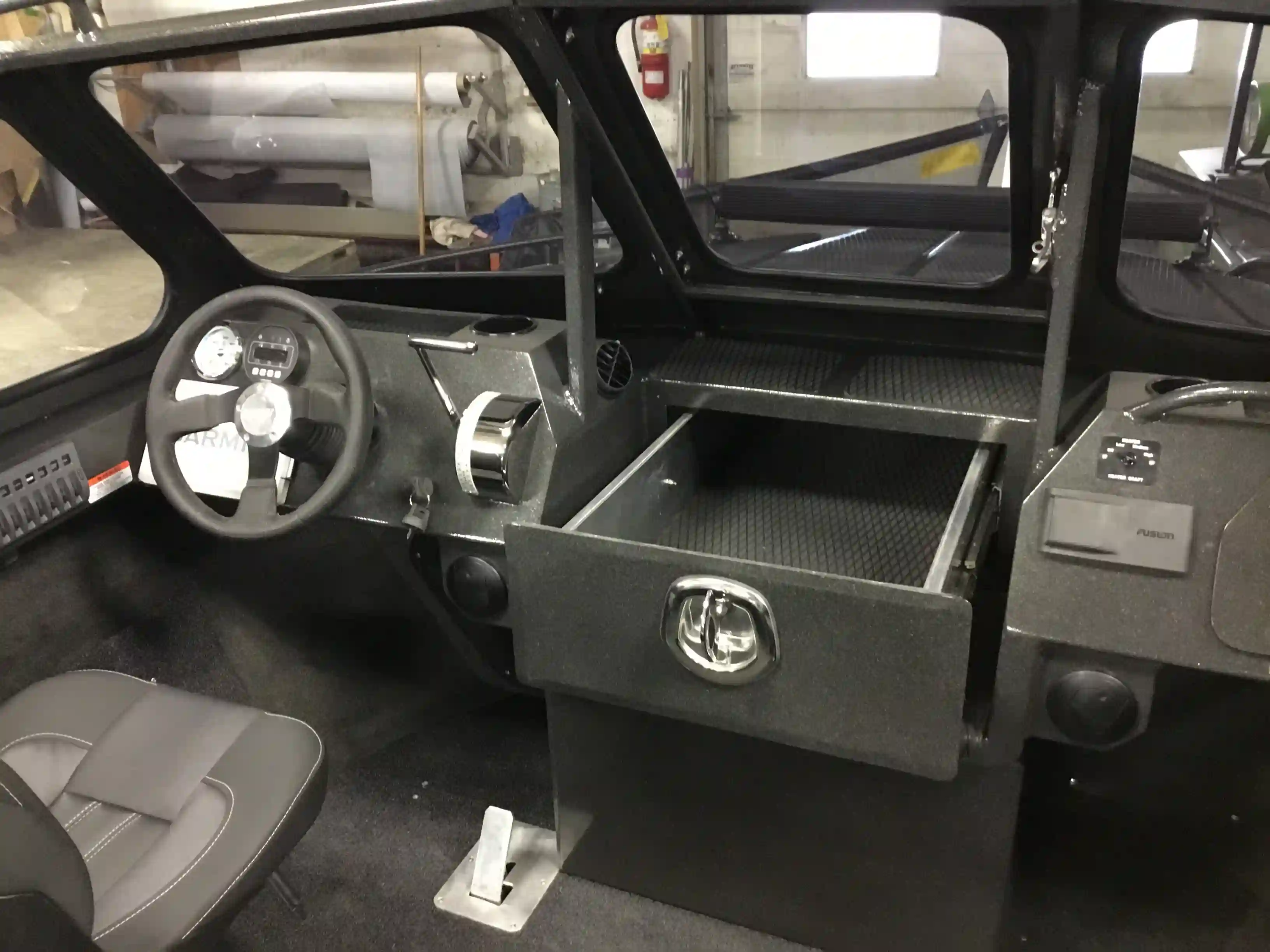

- Centre Pull Out Sliding Drawer

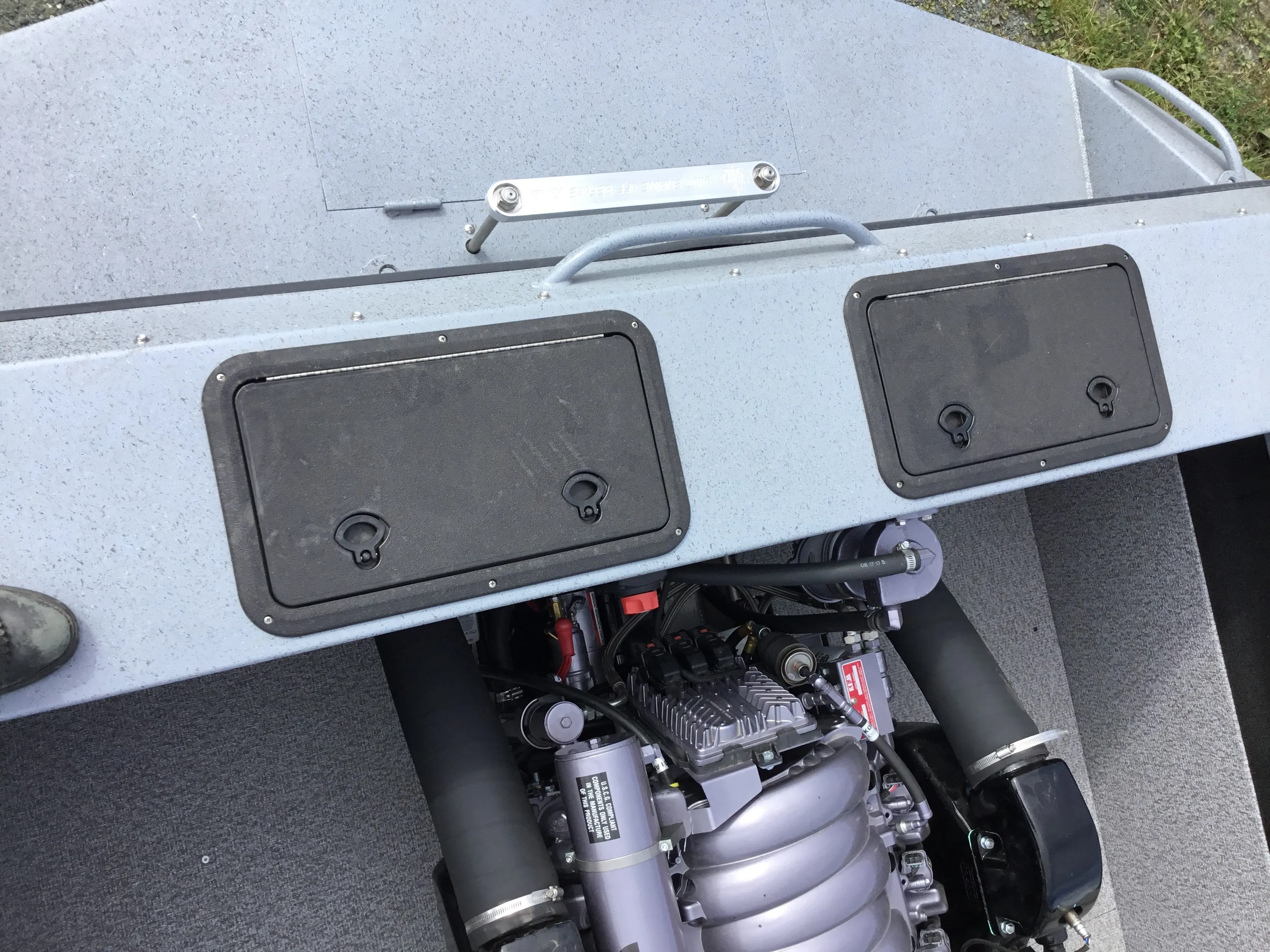

- Rear Deck Storage Hatches
- Hidden Glove Box

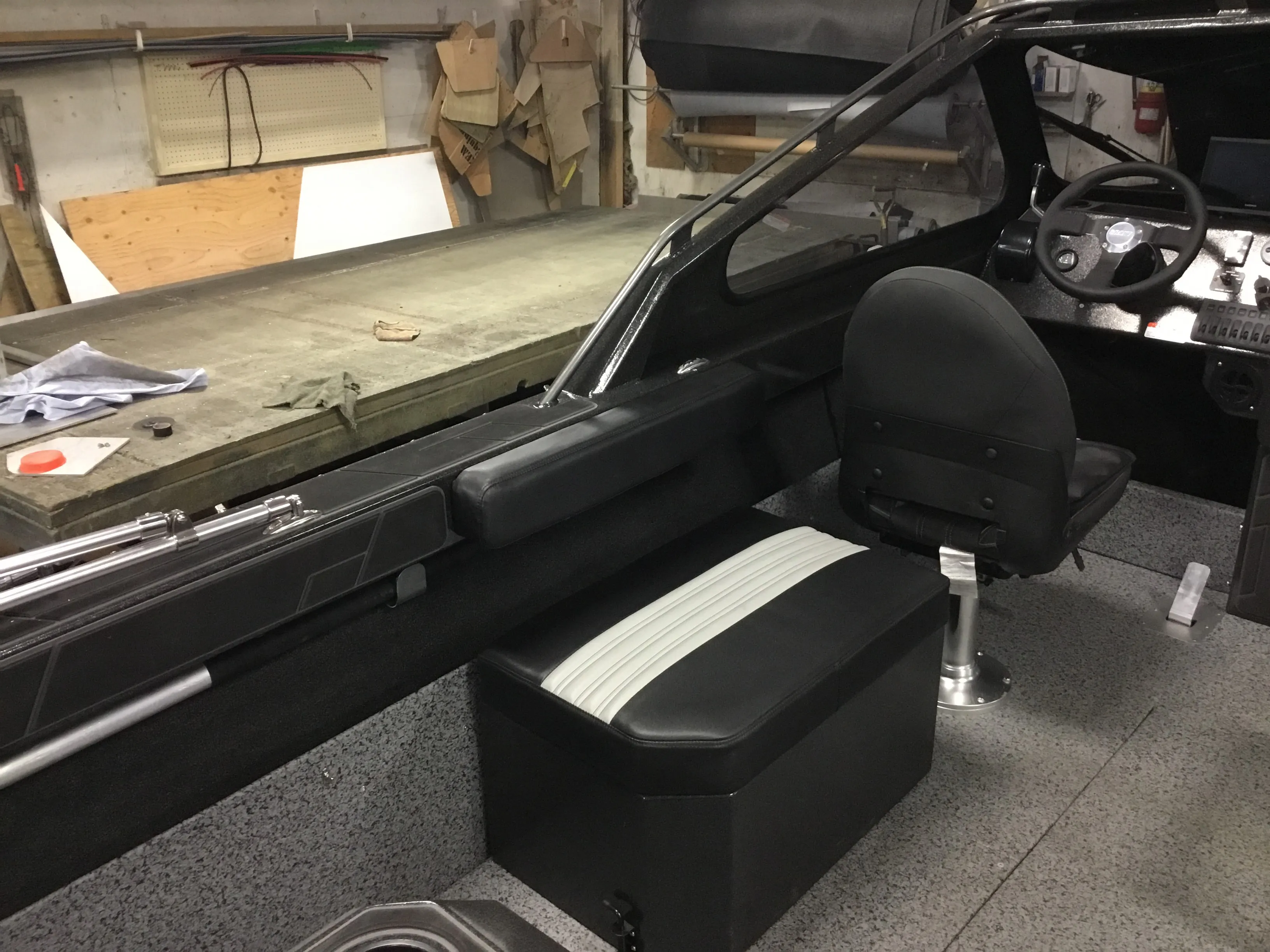

- Mid Ship Seat Boxes (removable)
- Electric Actuated Light Bar w/ Pod Lights

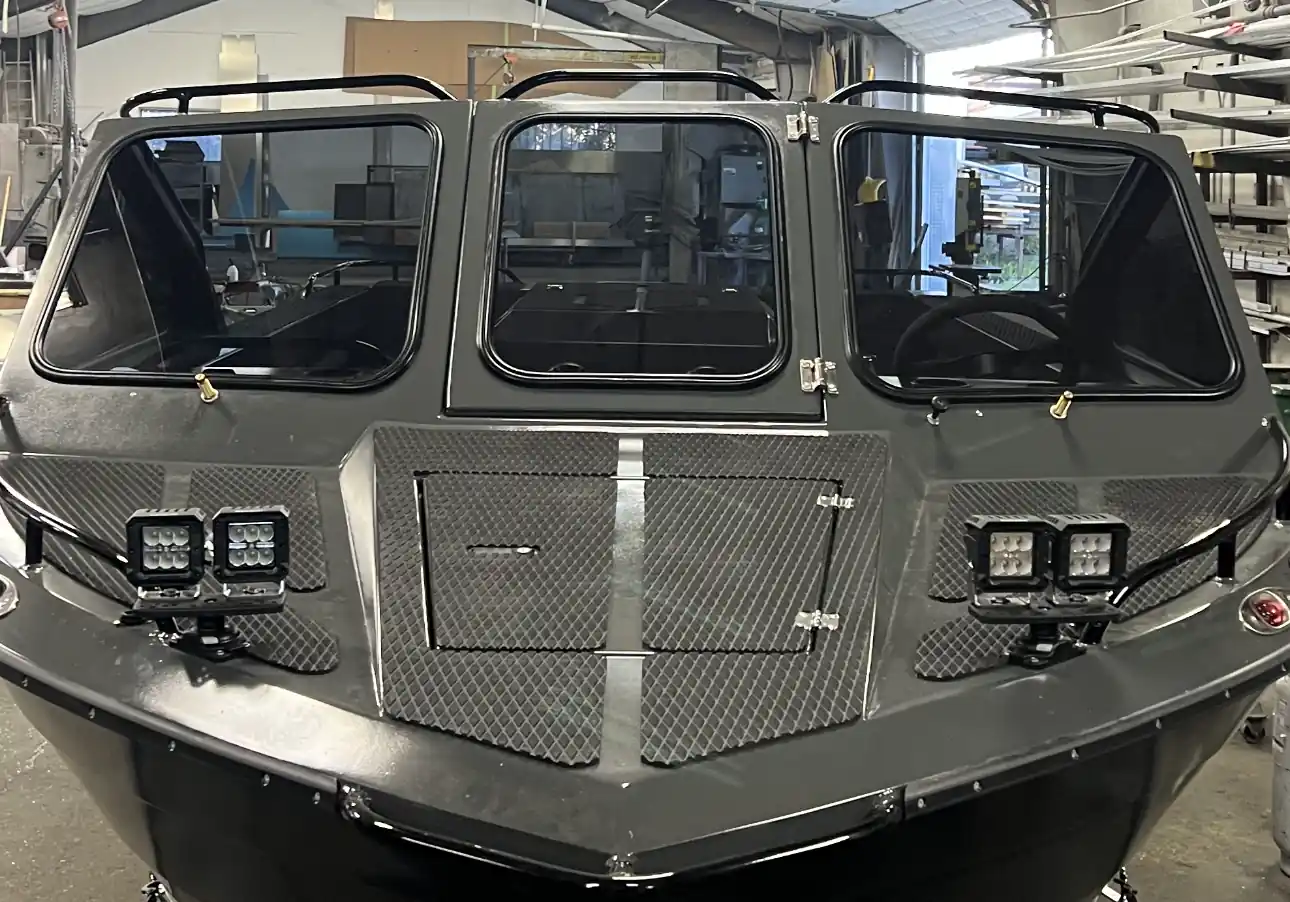

- Quick Removable Bow Light Mounts
Rail Options
- SS Bolt On Window
- SS Bolt On Tail
- SS Bolt On Stern
- SS Bolt On Bow
- SS Bolt On Dash
- Welded Window
- Welded Tail
- Welded Stern
- Welded Bow
- Welded Dash
- Welded Nose Rail
UHMW Molding
- Gunnel
- Swimgrid Edge
Side panels
- Vinyl Wrapped Aluminum
- Carpet Sides - Half
- Carpet Sides - Full
- Carpeted Front Full Bulkhead
- Vinyl Wrapped Alu Kick Plate
Standard Options
- Washdown Pump Kit & Hosing
- Bilge Pump 1200gpm
- Bilge Pump 2000gpm
- Blower & Vent
- 8 Position Switch Panel
- Push Button Billet Switch Panel
- AUX Beam Switch Panel
- Gauges - MVP & Tach
- Gauges -Garmin Chart Plotter w/ Built In Engine Gauges
- Battery - Single Interstate & Isolator
- Batteries- Dual Interstate & Isolator
- 4 Port Heater Craft 340
- Bison Diesel Heater
- Sandtrap - Southern Jet
- USB Power Points (each)
- Navigation Lights
- Cupholders - Black Plastic x4
- Cupholders - Stainless x4
Standard Options (Continued)
- Cleats - SS Fold Down
- Cleats - SS Fold Down Black
- Cleats - SS Fold Down SS Fancy Hydroturf - Bow, Decks, Swimgrid
- Steering - Standard Helm
- Steering - Tilt Helm
- Transom Steering Mount Block & Clevis Pin
- Exact Dual Stage Control w 64C + 33C Cables
- Cobalt Dual Stage Control Kitw 64C + 33C Cables
- Wexco 4A Single Wiper Kit
- Windshield Wipers - Dual Kit

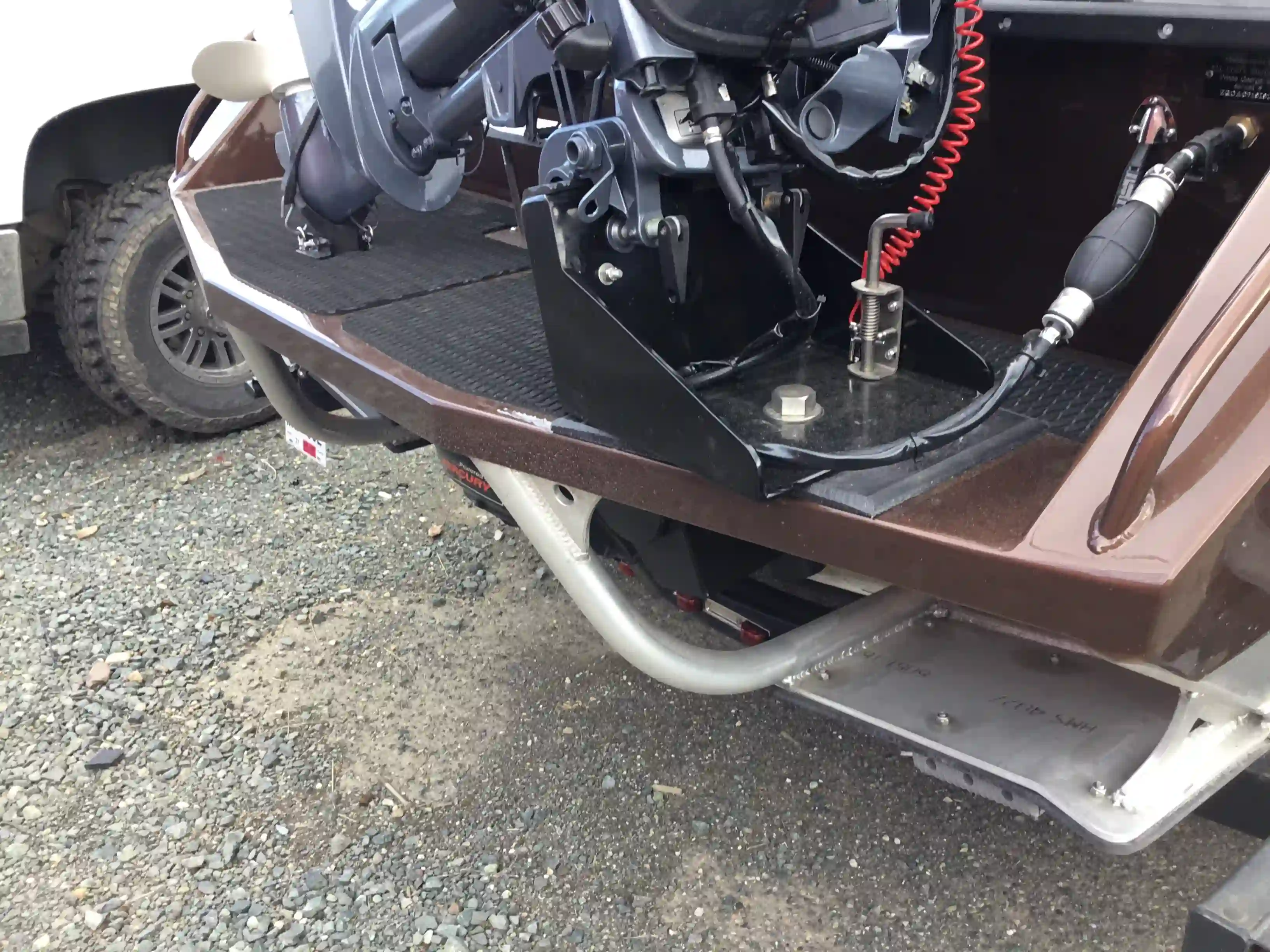

- Outboard Motor Bracket
- Outboard Motor Bracket - Black
- Outboard Power & Fuel Hookup
Paint
- Zolatone
- Raptor Liner/Single Stage
- Base/Clear Paint
- Paint From Gunnel Up
- Paint to Second Roll
- Two- Tone Paint
- Paint Price - per foot extra
- Custom

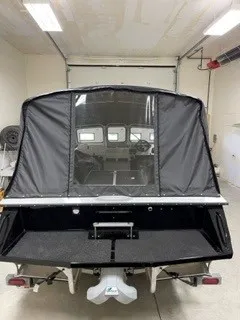

Upholstery

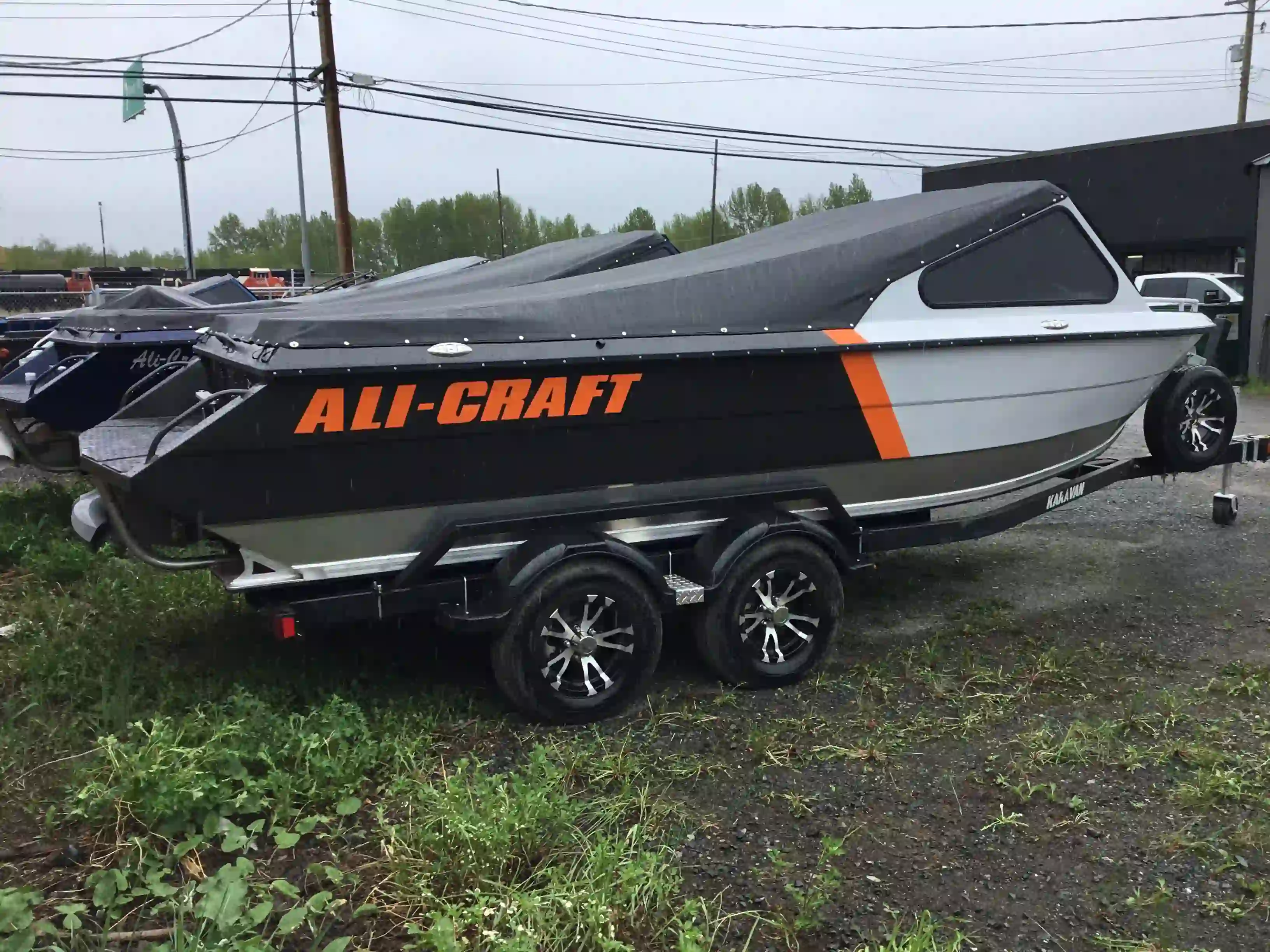

- Travel Cover w/ Windshield

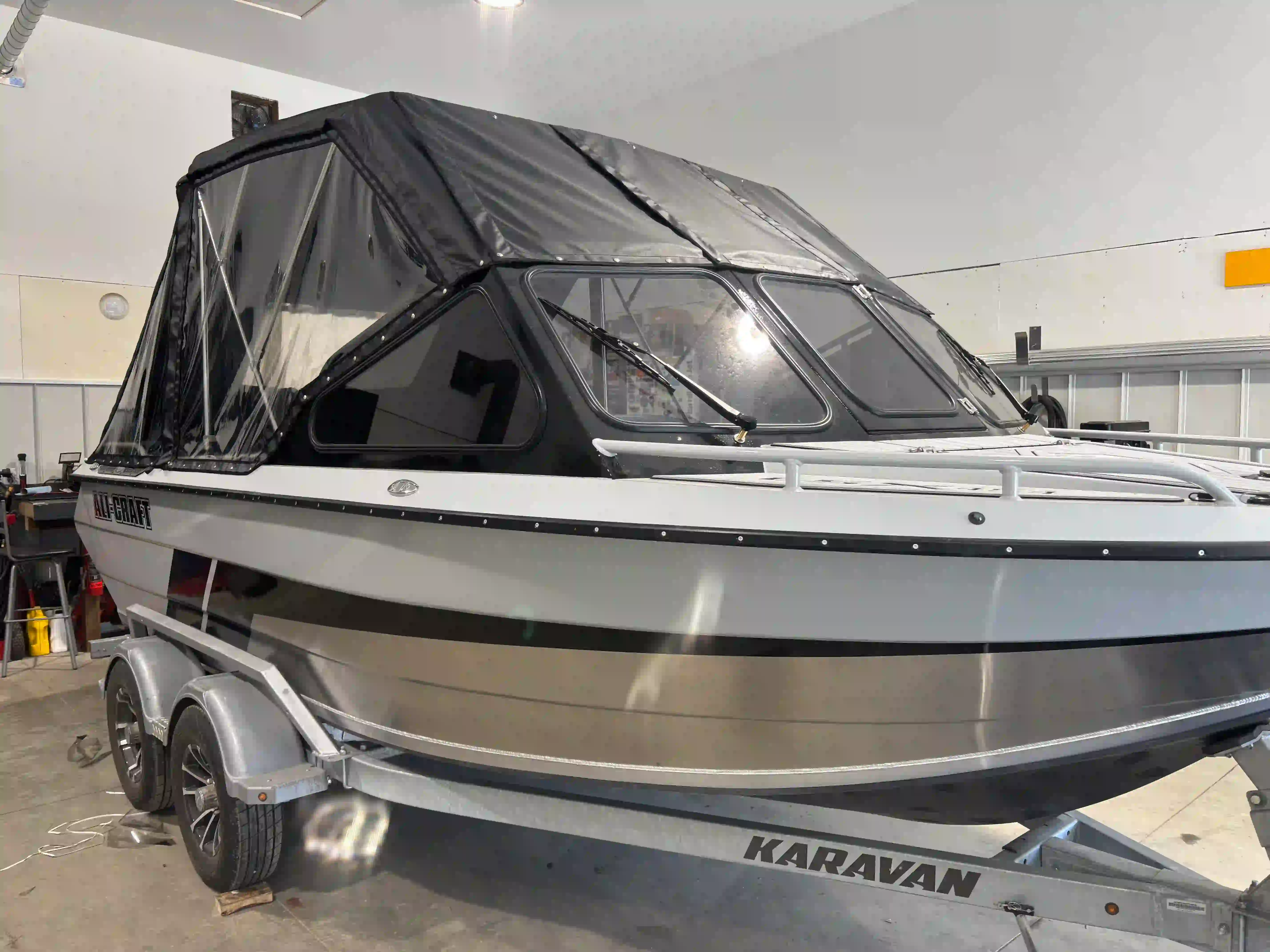

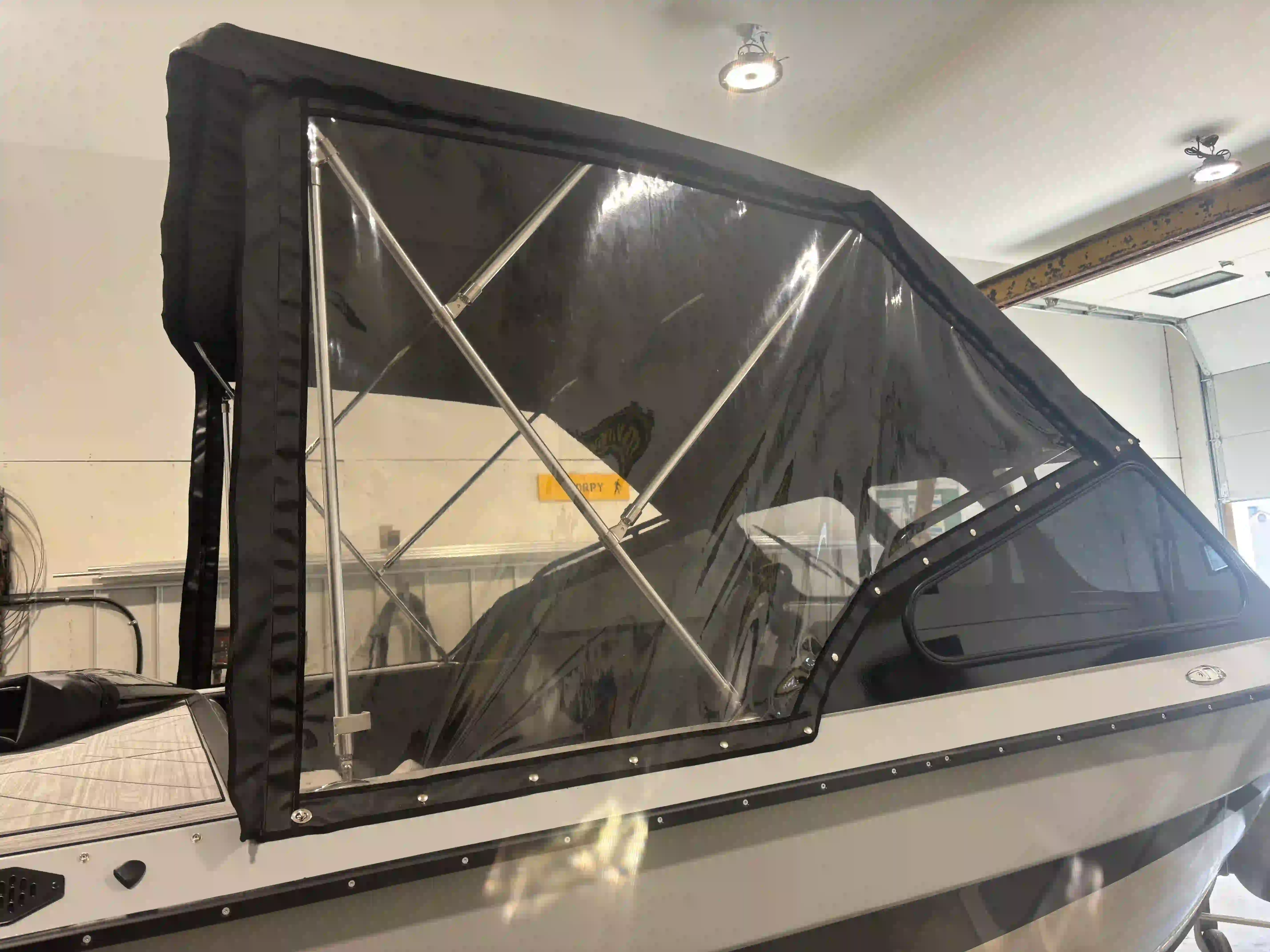

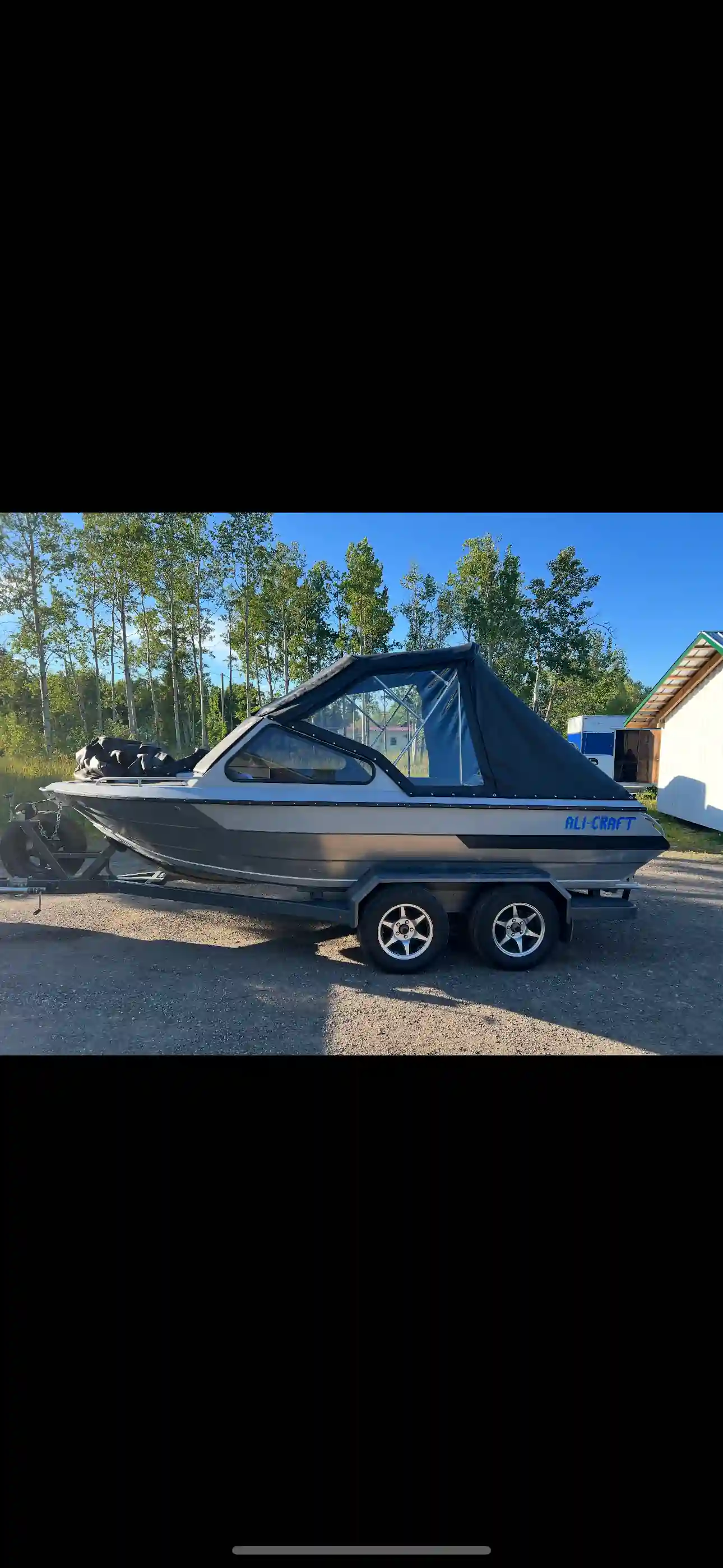

- Half Top w/ Side Windows
- Drop Curtain

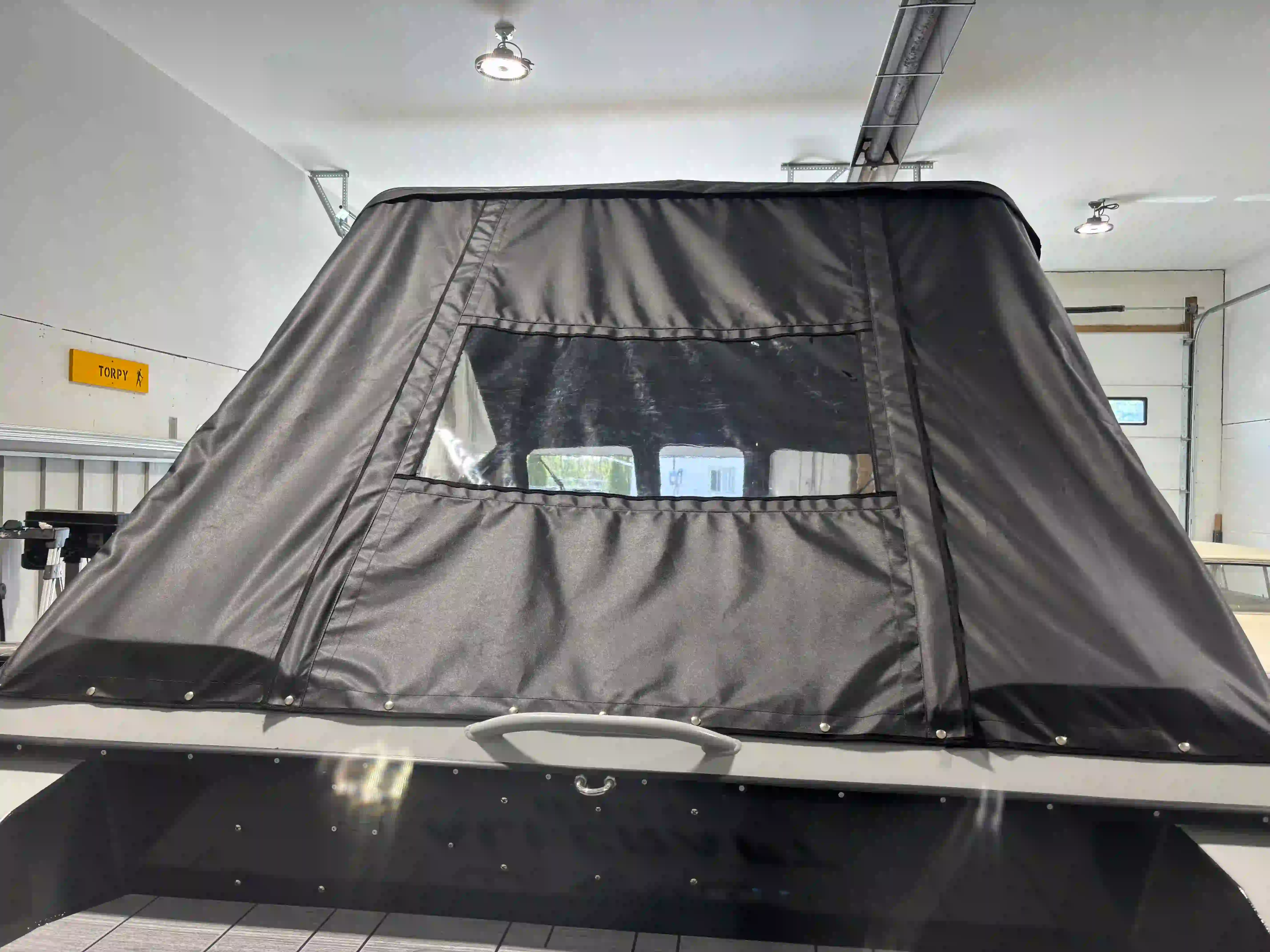

- Slope Back

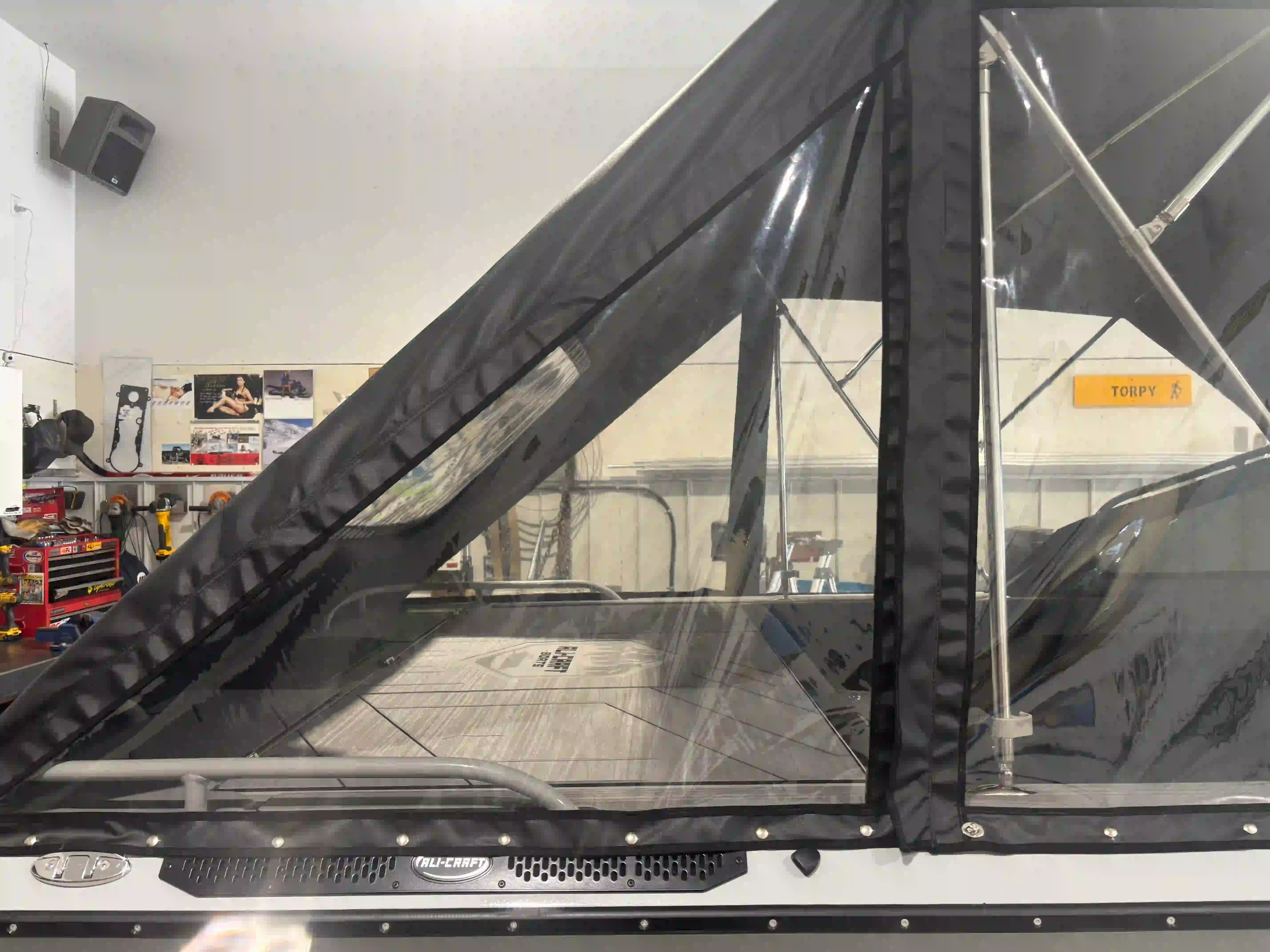

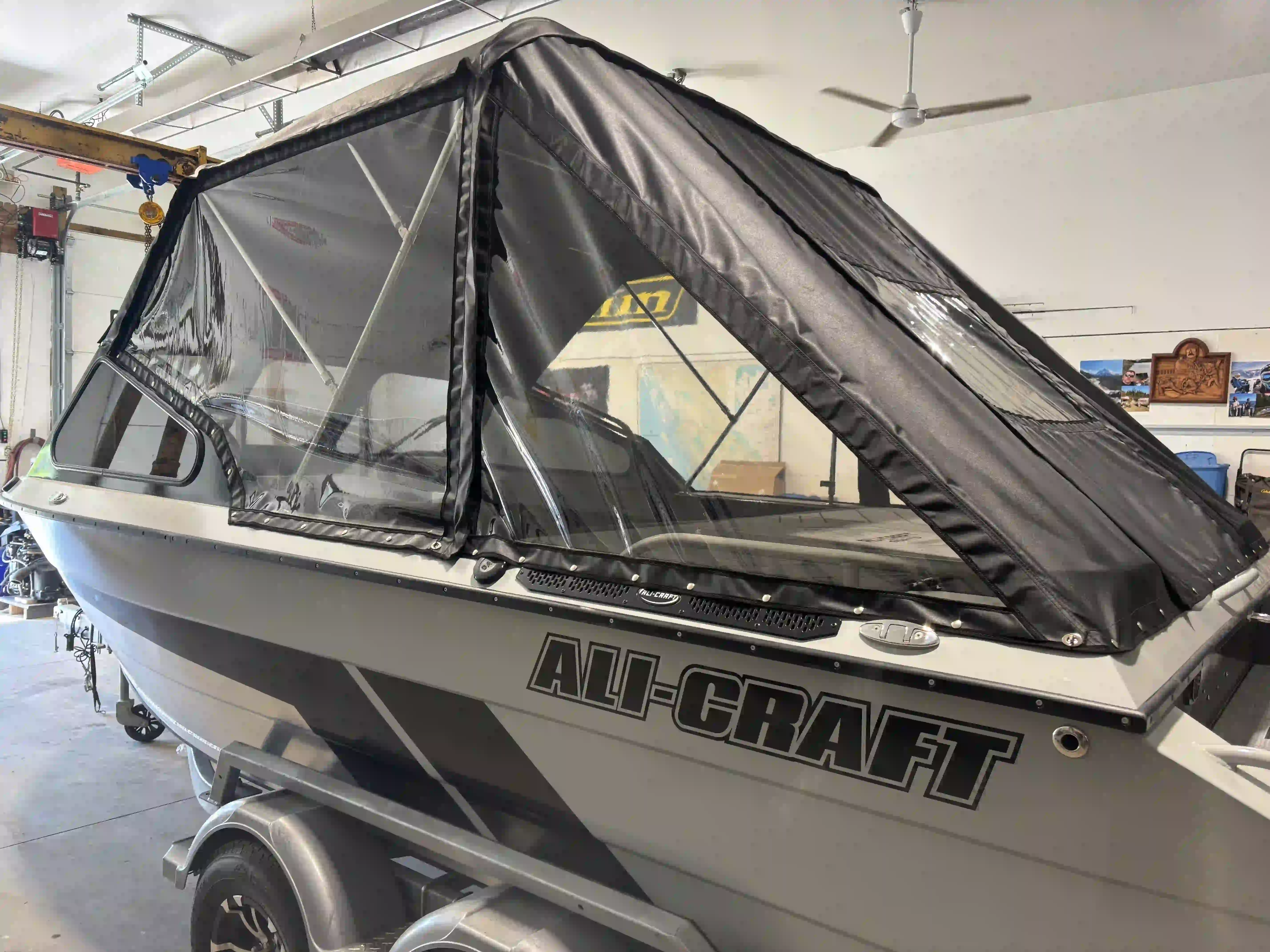

- Slope Back w/ Side Windows

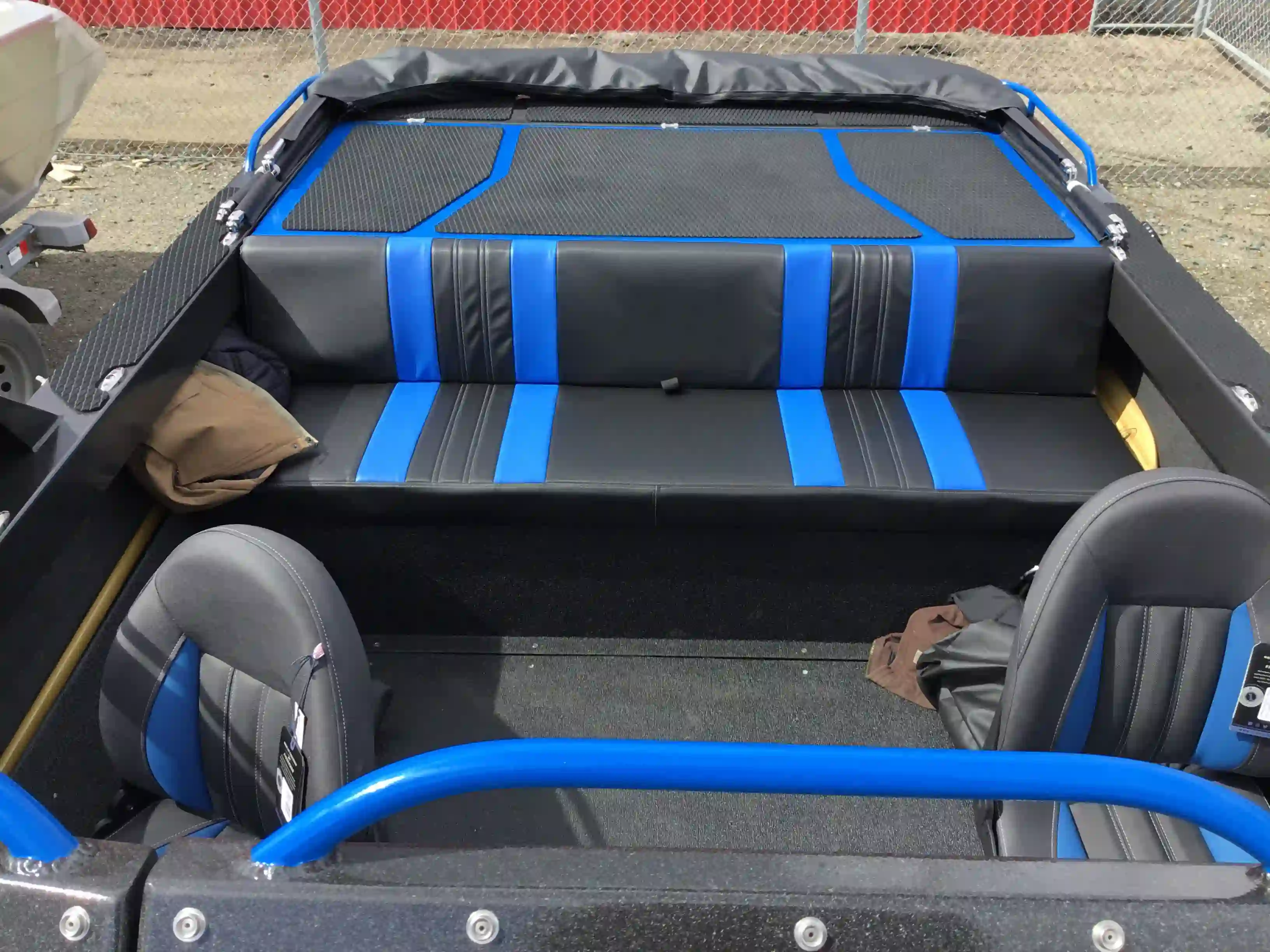

- Bench Seat w/ Backrest
- Bolster Seat w/ Backrest, Padded Sides
- Rear Bulkhead (top)
- Stand Up Camper Enclosure

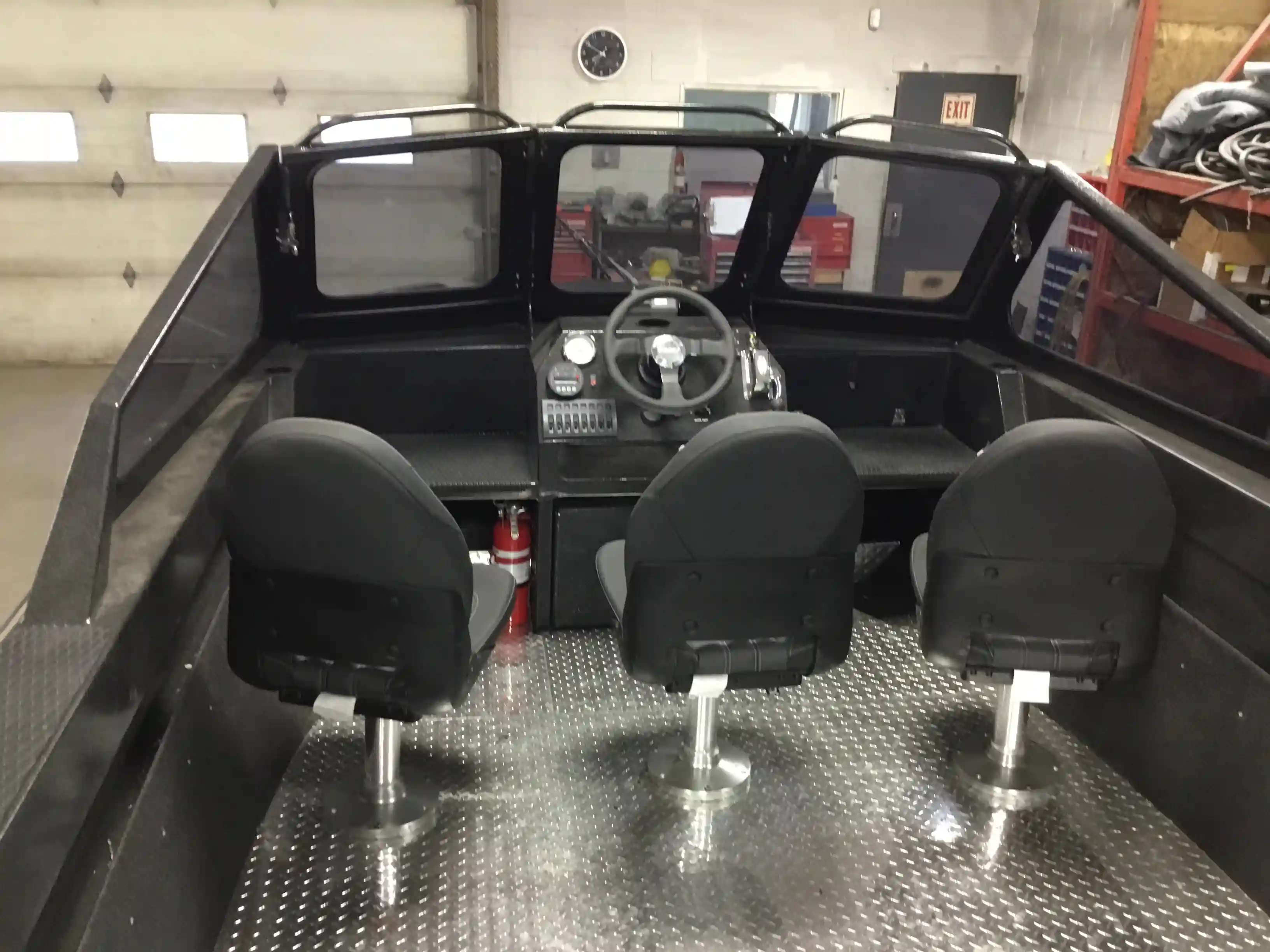

Helm & Control Location
- Port Side Drive LH Controls
- Port Side Drive RH Controls
- Starboard Side Drive LH Controls
- Starboard Side Drive RH Controls
Stringers
- 6 Stringers 1/4" 6061
- 8 Stringers 1/4" 6061
- 10 Stringers 1/4" 6061
Other:
- Stringers Under Engine
Hull Reinforcing
- Transom 1/4" 6061
- Chine 1/4" 6061
- Bilge 3/8" 6061
Floor
- 1/2" Plywood Black Vinyl
- 1/2" Plywood Grey Vinyl

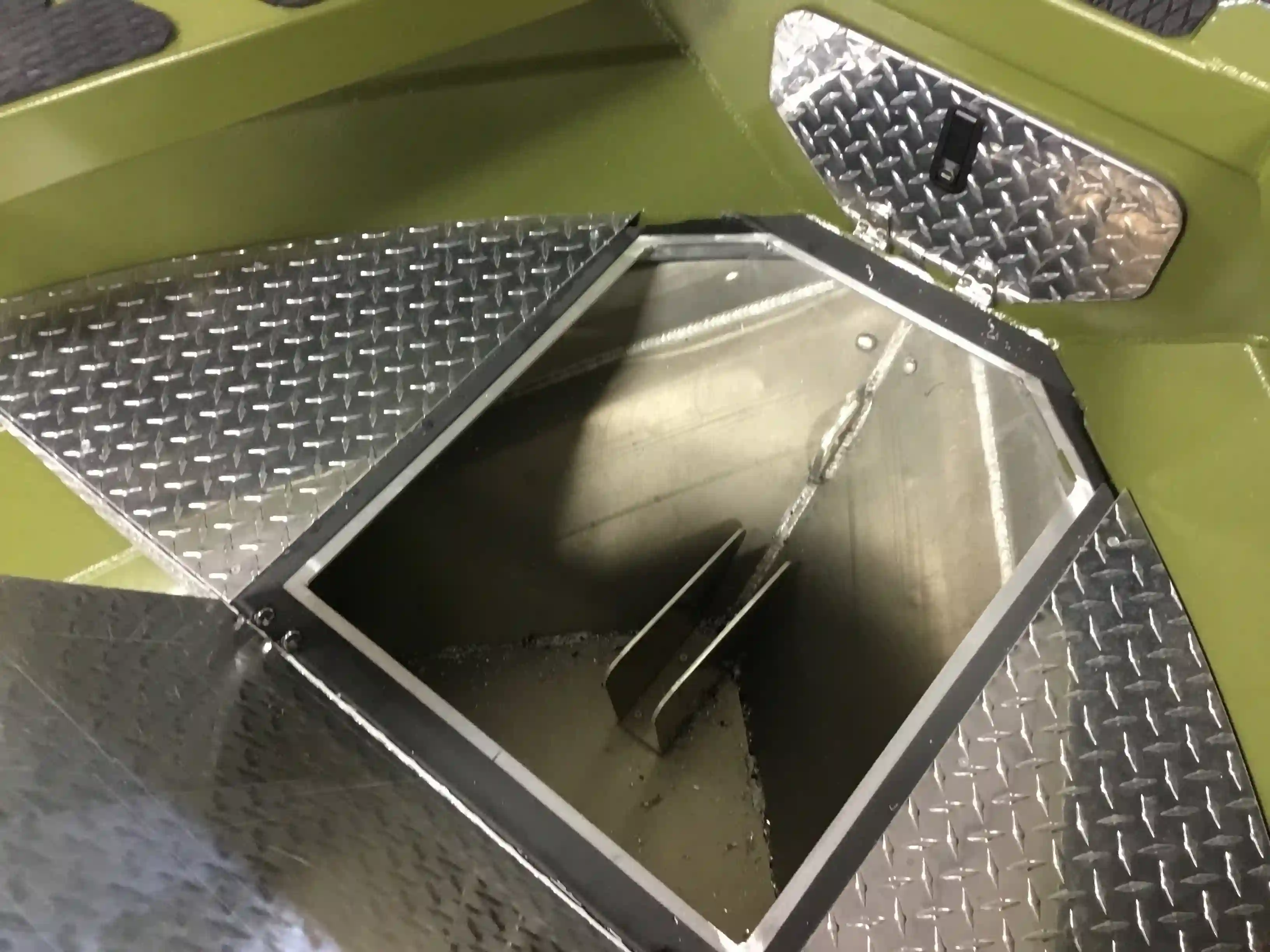

- 1/8" Aluminum Checkerplate
- 1/8" Aluminum Smooth
Stereo
- Fusion MS-RA210 Head Unit
- Fusion XS 2 Speakers
- Fusion XS 4 Speakers
- Fusion 5 Channel Amp
- Kicker KM8 8" Speakers
- Kicker KMF10 FreeAir Sub
- Wiring Harness & Breakers
- Full Stereo Install Cost
Interior Lighting
- Gunnel Lighting
- Glove Box Light
- Wake Light
Seating
- Tempress ProBax Seats (one item)
- Colours: Black, Dark Grey or Custom Colour
- Sliders - Driver
- Sliders - Passenger
- Removable Seat Base Plates
- Removable Side Seat Boxes
Windows
- Tinted Glass
- Lexan Margard
- Lexan Margard - bolted in
