Explorer

Best for
  • Hunting
  • Slow Planing Speed
  • Back-Country
  • Load Packing

Designed as an all-around hull platform, best for slow speed planing and load packing. Great for hunting, fishing and exploring.

The large reverse chines and 10 inch after planes help this hull plane at unbelievable slow speeds. With these characteristics they make it a favourite among those who venture well off the beaten path.

inquire about this model
see custom add-ons
View portfolio
No items found.

specifications & what’s included

view Brochure (PDF)
14' - 18'

Length

8' 2"

Beam

8º, 10°, 12°

vee angle at tans

6' 6"

Bottom Width

Hull Details:
  • Bottom 1/4" 5086 (Standard)
  • Bottom 1/4" 6061 (Heavy Duty)
  • Sides 1/8" 5086
  • Transom 3/16" 5086
  • Hull 6 Stringers (Standard)
  • Hull 8-10 Stringers (Heavy Duty)
  • Chine, Transom, and Bilge Reinforcing (Heavy Duty Model)
  • UHMW Bottom Reinforcement 4' or Full Bottom 1/2" on Standard, 3/4" Centre with 1/2" Wings and Tips on Heavy Duty
  • Floor 1/2" Treated Plywood Wrapped with Marine Grade Vinyl
  • Windows Tinted Glass
  • Custom Built Aluminum Fuel Tanks
Motor & Jet Packages
  • Kodiak 5.3L 343HP DI
  • Kodiak 6.2L 407HP DI
  • Kodiak LSX 454 511HP
  • Kodiak LT4 600HP
  • American Turbine SD309 w SS Impeller
  • Kodiak 3 Stage
  • Hamilton 214 w/ Closed Coupler
  • Southern Jet 216
  • Clean Out Grate (Exact 11bar)
Make it Yours

Built To order

contact us for financinG

Standard hull size

  • 16' Explorer (Base Hull)
  • 17'6" Explorer (Base Hull 6m)
  • Custom Explorer

Hull Width Options

  • 6' (Custom)
  • 6'3" (Custom)
  • 6'6" (Standard)
  • 6'10" (Custom)

UHMW Teflon

  • 4 feet 1/2" UHMW
  • Full 1/2" UHMW
  • Full 3/4" Centre 1/2" Wings
  • Bow Cap 1/2" Bolted
  • Additional charge $500/ft for Extra Lengths
  • Fuel Tank Options Bow Tank (200L/45G)
  • Bow & Rear Tanks Combo (273L/60G)
  • Custom Fuel Tank Size

Interior Layout Options

  • Rear Bulkhead w/ Bench Seat w/ Upholstered Backrest and Seat
  • Rear Bulkhead w/ Flip Up Bench Seat | No Upholstery
  • Rear Dog House Engine cover w/ Removable Seat Boxes
  • Rear Dog House Engine Cover w/ Locking Rear Doors | Wrap Around Rear Bench

Trailer

  • Karavan 4800 w/ Brakes (Black)
  • TWMC Custom Trailer w/ Electric Brakes & Torsion Axels
  • Trailer RockGARD BowBuddy

Custom Hull Options

  • Closed Bow
  • Closed Bow w/ Hatch
  • 4 inch Drop Bow w/ Hatch
  • Step Deck
  • Bow Rider
  • Dash Drop Trays
  • Centre Glove Box
  • Centre Pull Out Sliding Drawer
  • Rear Deck Storage Hatches
  • Hidden Glove Box
  • Mid Ship Seat Boxes (Removable)
  • Electric Actuated Light Bar w/ Pod Lights
  • Quick Removable Bow Light Mounts

Rail Options

  • SS Bolt On Window
  • SS Bolt On Tail
  • SS Bolt On Stern
  • SS Bolt On Bow
  • SS Bolt On Dash
  • Welded Window
  • Welded Tail
  • Welded Stern
  • Welded Bow
  • Welded Dash
  • Welded Nose Rail

UHMW Molding

  • Gunnel
  • Swimgrid Edge

Side panels

  • Vinyl Wrapped Aluminum
  • Carpet Sides - Half
  • Carpet Sides - Full
  • Carpeted Front Full Bulkhead
  • Vinyl Wrapped Aluminum Kick Plate

Standard Options

  • Washdown Pump Kit & Hosing
  • Bilge Pump 1200gpm
  • Bilge Pump 2000gpm
  • Blower & Vent
  • 8 Position Switch Panel
  • Push Button Billet Switch Panel
  • AUX Beam Switch Panel
  • Gauges - MVP & Tach
  • Gauges -Garmin Chart Plotter  w/ Built In Engine Gauges
  • Battery - Single Interstate & Isolator
  • Batteries- Dual Interstate & Isolator
  • 4 Port Heater Craft 340
  • Bison Diesel Heater
  • Sandtrap - Southern Jet
  • USB Power Points (each)
  • Navigation Lights
  • Cupholders - Black Plastic x4
  • Cupholders - Stainless x4

Standard Options (Continued)

  • Cleats - SS Fold Down
  • Cleats - SS Fold Down (Black)
  • Fancy Hydroturf - Bow, Decks, Swimgrid
  • Steering - Standard Helm
  • Steering - Tilt Helm
  • Transom Steering Mount Block & Clevis Pin
  • Dual Stage Control w 64C + 33C Cables
  • Wexco 4A Single Wiper Kit
  • Windshield Wipers - Dual Kit
  • Outboard Motor Bracket - Aluminum
  • Outboard Motor Bracket - Black
  • Outboard Power & Fuel Hookups

Paint

  • Zolatone
  • Raptor Liner/Single Stage
  • Base/Clear Paint
  • Paint From Gunnel Up
  • Paint to Second Roll
  • Two- Tone Paint
  • Paint Price - per foot extra
  • Custom

Upholstery

  • Travel Cover w/ Windshield
  • Half Top w/ Side Windows
  • Drop Curtain
  • Slope Back
  • Slope Back w/ Side Windows
  • Bench Seat w/ Backrest
  • Bolster seat w/ Backrest, Padded Sides
  • Rear Bulkhead (Top)
  • Stand Up Camper Enclosure

Helm & Control Location

  • Port Side Drive LH Controls
  • Port Side Drive RH Controls
  • Starboard Side Drive LH Controls
  • Starboard Side Drive RH Controls

Stringers

  • 6 Stringers 1/4" 6061
  • 8 Stringers 1/4" 6061
  • 10 Stringers 1/4" 6061

‍

‍Other:

  • Stringers Under Engine

Hull Reinforcing

  • Transom 1/4" 6061
  • Chine 1/4" 6061
  • Bilge 3/8" 6061

Floor

  • 1/2" Plywood Black Vinyl
  • 1/2" Plywood Grey Vinyl
  • 1/8" Aluminum Checkerplate
  • 1/8" Aluminum Smooth

Stereo

  • Fusion MS-RA210 Head Unit
  • Fusion XS 2 Speakers
  • Fusion XS 4 Speakers
  • Fusion 5 Channel Amp
  • Kicker KM8 8" Speakers
  • Kicker KMF10 FreeAir Sub

Interior Lighting

  • Gunnel Lighting
  • Glove Box Light
  • Wake Light

Seating

  • Tempress ProBax Seats - Colours below
  • Colours: Black, Dark Grey or Custom Colour
  • Sliders - Driver
  • Sliders - Passenger
  • Removable Seat Base Plates
  • Removable Side Seat Boxes

Windows

  • Tinted Glass
  • Lexan Margard
  • Lexan Margard - bolted in

Add-ons Gallery

Interior Layout Options
Custom Hull Options
Upholstery
Trailer
Stringers
UHMW Teflon
Standard Hull Size
Rear Dog House Engine Cover w locking rear doors
Rear Dog House Engine Cover w locking rear doors
Rear Dog House Engine Cover w locking rear doors
Interior Layout Option 12
Rear Bulkhead w Flip Up bench seat
Rear Bulkhead w Flip Up bench seat
Rear Bulkhead w Flip Up bench seat
Interior Layout Options 11
Rear Bulkhead w Bench Seat
Rear Bulkhead w Bench Seat
Rear Bulkhead w Bench Seat
Interior Layout Option 10
Quick Removable High Fishing Rail
Quick Removable High Fishing Rail
Quick Removable High Fishing Rail
Interior Layout Option 9
Rear Doghouse with Mid-Height Floor Storage
Rear Doghouse with Mid-Height Floor Storage
Rear Doghouse with Mid-Height Floor Storage
Interior Layout Option 8
Removable Side Seat Boxes
Removable Side Seat Boxes
Removable Side Seat Boxes
Interior Layout Option 5
Rear Dog House Engine cover w removable seat boxes
Rear Dog House Engine cover w removable seat boxes
Rear Dog House Engine cover w removable seat boxes
Interior Layout Option 4
Rear Bulkhead with Back rest and Seat upholstery only
Rear Bulkhead with Back rest and Seat upholstery only
Rear Bulkhead with Back rest and Seat upholstery only
Interior Layout Option 3
Rear Doghouse with Locking Rear Doors and Side Seat Boxes
Rear Doghouse with Locking Rear Doors and Side Seat Boxes
Rear Doghouse with Locking Rear Doors and Side Seat Boxes
Interior Layout Option 1
Mid Ship Seat Boxes (removable)
Mid Ship Seat Boxes (removable)
Rear Deck Storage Hatches
Rear Deck Storage Hatches
Step Deck
Step Deck
Step Deck Bow
Step Deck Bow
Reverse Bow Pods
Reverse Bow Pods
Raised bow hatch
Raised bow hatch
Quick Removable Bow Light Mounts
Quick Removable Bow Light Mounts
Outboard bracket
Outboard bracket
Hidden Glove Box
Hidden Glove Box
Centre Glove Box
Centre Glove Box
Flip Bench
Flip Bench
Centre Crash Bar
Centre Crash Bar
Explorer Centre Console
Explorer Centre Console
Dash Drop Trays
Dash Drop Trays
Drop bow
Drop bow
Centre Pull Out Sliding Drawer
Centre Pull Out Sliding Drawer
Closed Bow w/ Hatch
Closed Bow w/ Hatch
CAPTION HERE
CAPTION HERE
Centre Console Half Floor
Centre Console Half Floor
Bow Ladder
Bow Ladder
4 inch Drop Bow w/ Hatch
4 inch Drop Bow w/ Hatch
Slope Back
Slope Back
CAPTION HERE
CAPTION HERE
Stand Up Camper Enclosure
Stand Up Camper Enclosure
CAPTION HERE
CAPTION HERE
CAPTION HERE
CAPTION HERE
Bench Seat w/ backrest
Bench Seat w/ backrest
CAPTION HERE
CAPTION HERE
Slope Back w/ Side Windows
Slope Back w/ Side Windows
CAPTION HERE
CAPTION HERE
CAPTION HERE
CAPTION HERE

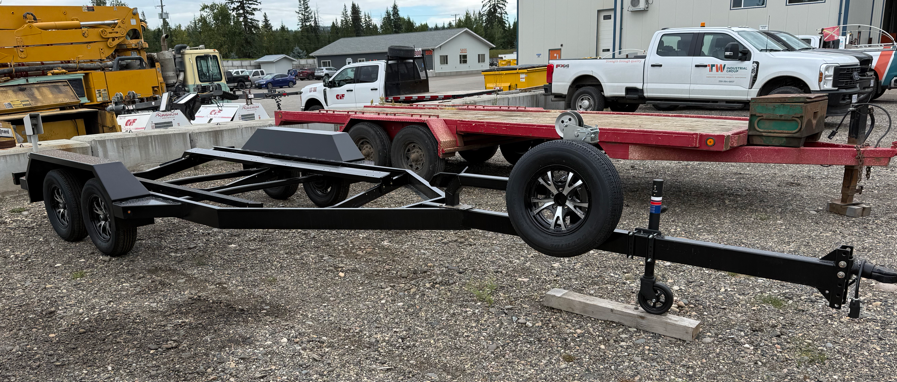

TWMC Tandem Axel Electric Brakes, Custom Built with E-Rated Tires on Aluminum Mags
TWMC Tandem Axel Electric Brakes, Custom Built with E-Rated Tires on Aluminum Mags
We're updating our gallery! Please check back soon.
Full 1/2" UHMW
Full 1/2" UHMW
We're updating our gallery! Please check back soon.
Ali-Craft custom boat in garage

Start Your Build
